Spra-Coupe

4655

Sprayer

Max Speed
18.6 mph
Solution Tank Capacity
400.0 gal
Displacement
269 in³
Gross Power
123.0 hp
All floaters/sprayers

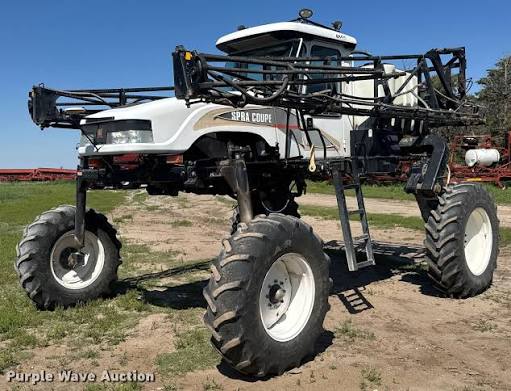

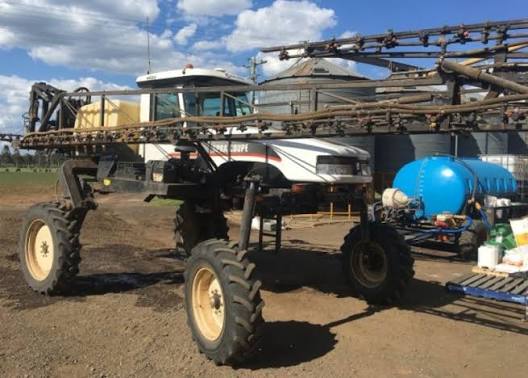

Spra-Coupe 4655 Sprayer
1 / 5
Image 1 of 5
Image: apairltd.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Solution Tank Capacity400.0 gal
Fuel Capacity44.0 gal
Dry Weight - min9,856 lb
Hydraulic Fluid Capacity4.0 gal

Engine

Engine specifications
Engine Model1104C
Displacement269 in³
Gross Power123.0 hp
Number of Cylinders4
AspirationTurbocharger
Gross Torque369 lb-ft

Dimensions

Dimensions specifications
Wheelbase141 in
Overall Length19 in
Transport Width134 in
Transport Height120 in
Tire SizeFront9.0-24 8-Ply Rear 320/85R24

Transmission

Transmission specifications
Max Speed18.6 mph
Transmission TypeAllison 2100 RDS 5-speed automatic
Number of Forward Gears5
Number of Reverse Gears1

Boom

Boom specifications
Max Boom Width960 in
Min Boom Width720 in
