Sumitomo

SH120-3

Excavator

Operating Weight
26,456 lb
Max Digging Depth
219 in
Net Power
90.0 hp
All excavators

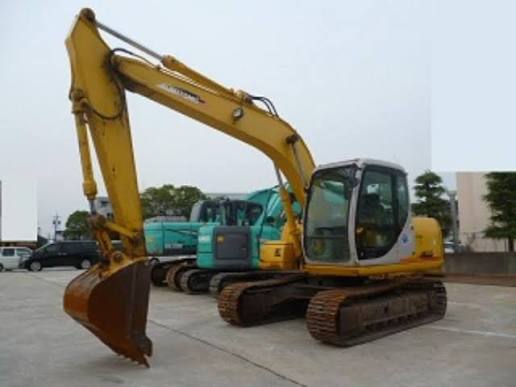

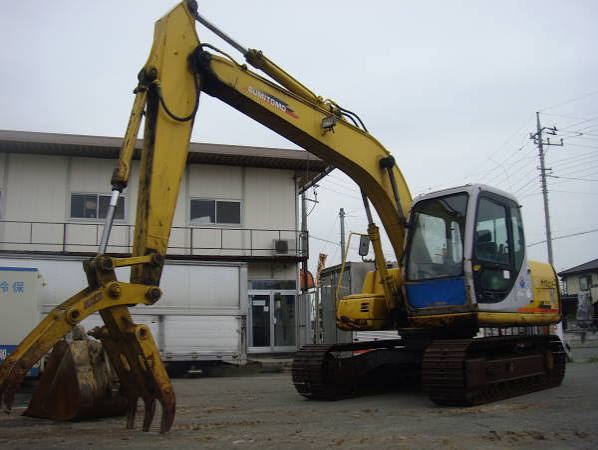

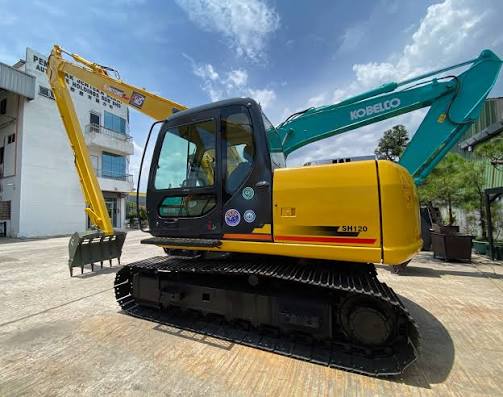

Sumitomo SH120-3 Excavator
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,456 lb
Fuel Capacity66.1 gal
Hydraulic System Fluid Capacity32.5 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-4BG1T
Displacement264 in³
Power Measured @2,100 rpm
Net Power90.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground110 in
Tail Swing Radius81 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Max Travel Speed3.5 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth219 in
Max Reach Along Ground326 in
Max Loading Height267 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height361 in
Shipping Length of Unit295 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
