Sumitomo

SH135X-3

Excavator

Operating Weight
28,660 lb
Max Digging Depth
216 in
Net Power
87.0 hp
All excavators

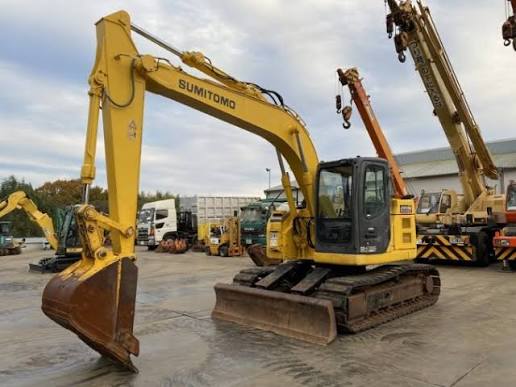

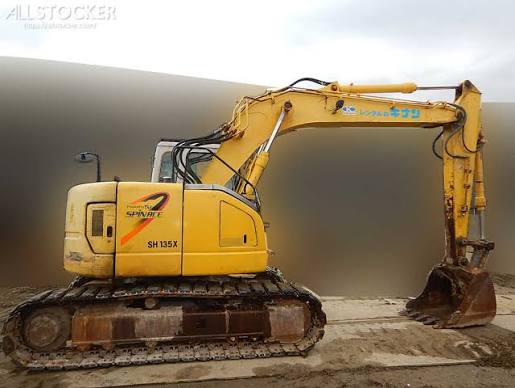

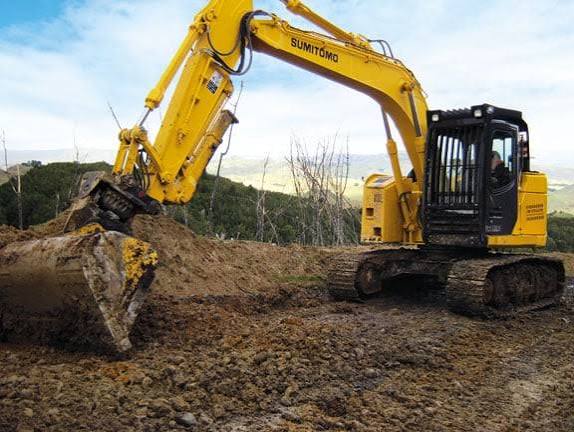

Sumitomo SH135X-3 Excavator
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,660 lb
Fuel Capacity43.6 gal
Hydraulic System Fluid Capacity34.4 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-4BG1T
Displacement264 in³
Power Measured @2,100 rpm
Net Power87.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab109 in
Length of Track on Ground110 in
Tail Swing Radius90 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance35 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Max Travel Speed3.2 mph
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth216 in
Max Reach Along Ground324 in
Max Loading Height272 in
Max Vertical Wall Digging Depth191 in
Max Cutting Height367 in
Shipping Length of Unit285 in
Shipping Height of Unit109 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
