Sumitomo

SH75U

Excavator

Operating Weight
17,461 lb
Max Digging Depth
166 in
Net Power
49.0 hp
All excavators

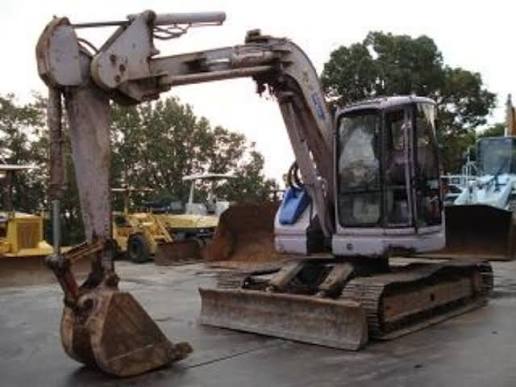

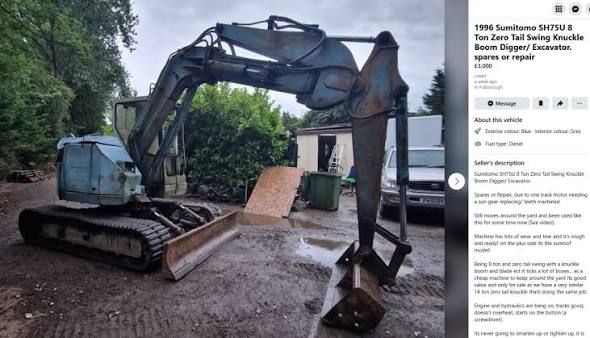

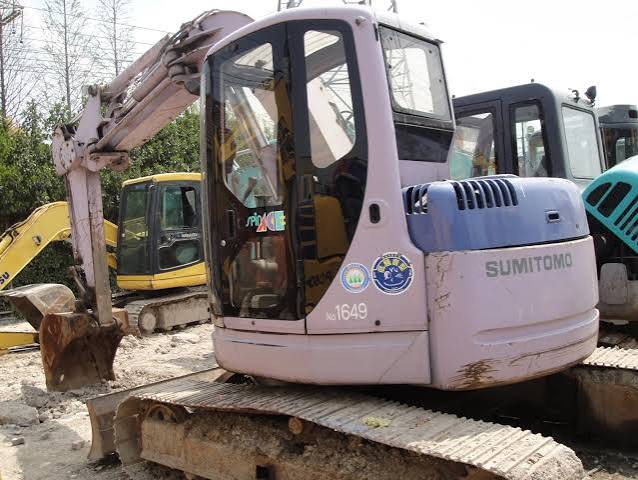

Sumitomo SH75U Excavator
1 / 5
Image 1 of 5
Image: machinio.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,461 lb
Hydraulic Pump Flow Capacity34.9 gal/min
Hydraulic System Relief Valve Pressure3,983 psi

Engine

Engine specifications
Engine Model4JB1
Displacement169 in³
Power Measured @2,000 rpm
Net Power49.0 hp
Number of Cylinders4
Torque Measured @1,800 rpm
Max Torque130 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab107 in
Tail Swing Radius46 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance31 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.8 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth166 in
Max Reach Along Ground254 in
Max Loading Height206 in
Max Vertical Wall Digging Depth122 in
Max Cutting Height288 in
Shipping Length of Unit246 in
Shipping Height of Unit191 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
