Sumitomo

SH75X-3

Excavator

Operating Weight
15,631 lb
Max Digging Depth
163 in
Net Power
56.2 hp
All excavators

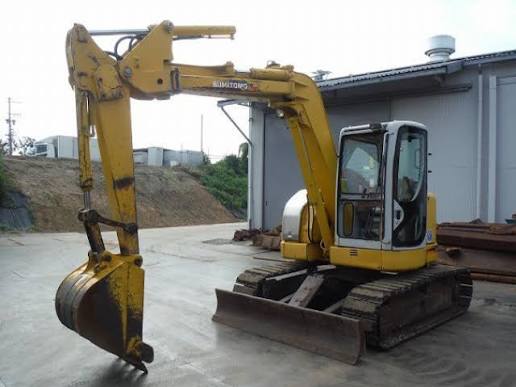

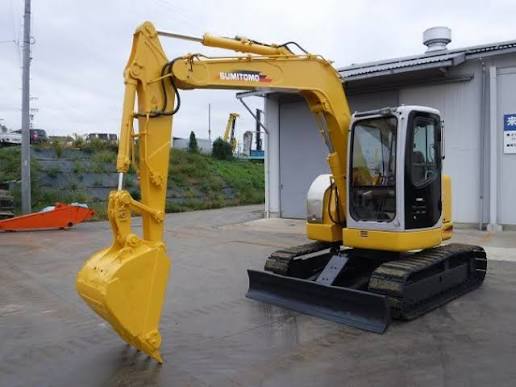

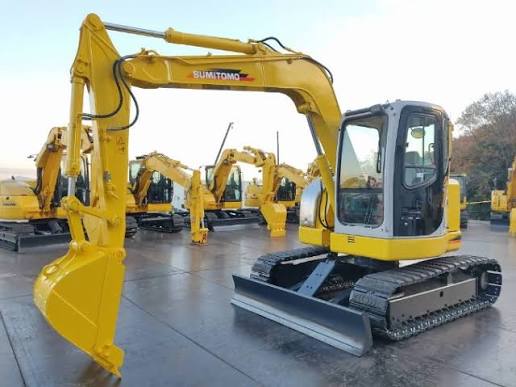

Sumitomo SH75X-3 Excavator
1 / 5
Image 1 of 5
Image: sumitomokenki.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,631 lb
Fuel Capacity26.5 gal
Hydraulic System Fluid Capacity25.1 gal
Hydraulic System Relief Valve Pressure4,264 psi

Engine

Engine specifications
Engine Model4TNE98
Displacement203 in³
Power Measured @2,000 rpm
Net Power56.2 hp

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab107 in
Tail Swing Radius56 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge74 in
Max Travel Speed3.0 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth163 in
Max Reach Along Ground257 in
Max Loading Height207 in
Max Vertical Wall Digging Depth144 in
Max Cutting Height289 in
Shipping Length of Unit234 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
