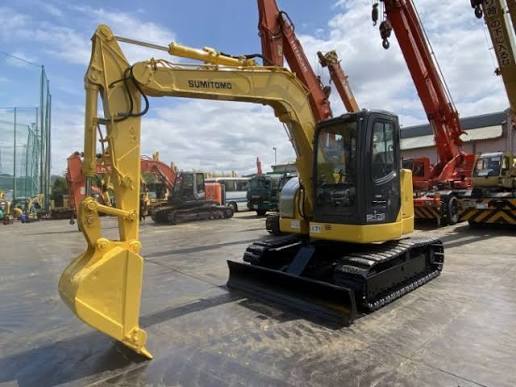

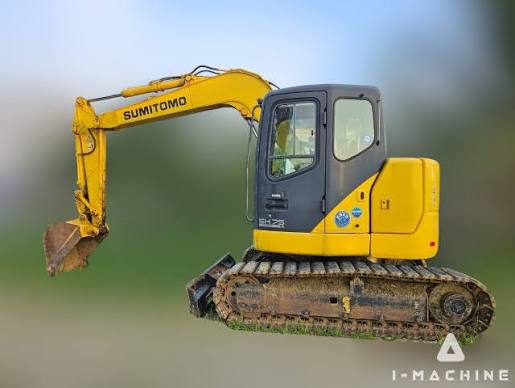

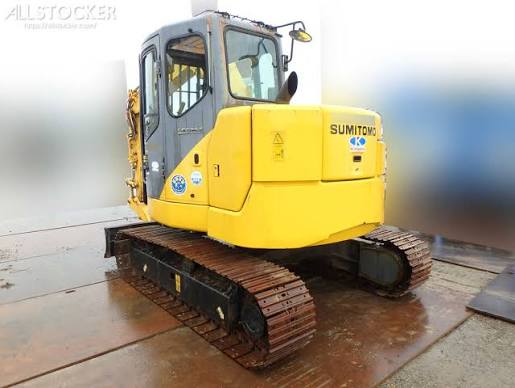

Sumitomo
SH75X-3B
- Operating Weight
- 17,461 lb
- Max Digging Depth
- 163 in
- Max Digging Depth
- 179 in
- Net Power
- 53.7 hp
1 / 5
Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 17,461 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Hydraulic System Fluid Capacity | 25.7 gal |
| Hydraulic System Relief Valve Pressure | 4,264 psi |
Engine
| Engine Model | AU-4LE2X |
|---|---|
| Displacement | 133 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 53.7 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 107 in |
| Tail Swing Radius | 56 in |
| Width to Outside of Tracks | 93 in |
| Removal Counterweight Clearance | 31 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Max Travel Speed | 3.3 mph |
| Shoe Size | 18 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 163 in |
|---|---|
| Max Loading Height | 207 in |
| Max Vertical Wall Digging Depth | 144 in |
| Max Cutting Height | 289 in |
| Shipping Length of Unit | 234 in |
| Shipping Height of Unit | 115 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 179 in |
|---|---|
| Max Vertical Wall Digging Depth | 162 in |
| Max Cutting Height | 300 in |
| Max Loading Height | 219 in |
| Shipping Length of Unit | 233 in |
| Shipping Height of Unit | 117 in |
