Sumitomo

SH75XU-3

Excavator

Operating Weight
17,196 lb
Max Digging Depth
166 in
Net Power
57.0 hp
All excavators

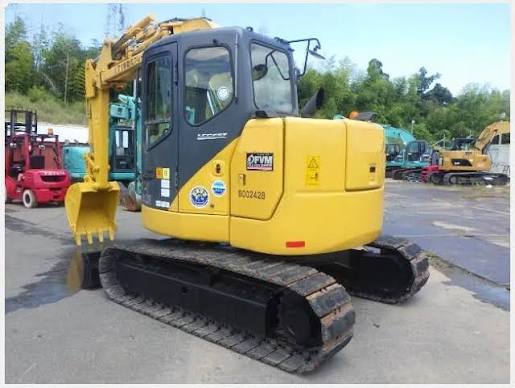

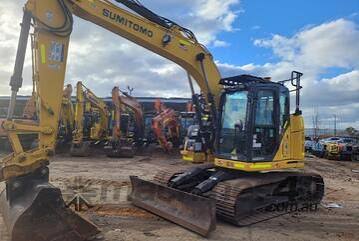

Sumitomo SH75XU-3 Excavator
1 / 5
Image 1 of 5
Image: constructionsales.com.au

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,196 lb
Fuel Capacity26.5 gal
Hydraulic System Fluid Capacity25.1 gal
Hydraulic System Relief Valve Pressure4,264 psi

Engine

Engine specifications
Engine Model4TNE98
Displacement203 in³
Power Measured @2,000 rpm
Net Power57.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab108 in
Tail Swing Radius57 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance32 in

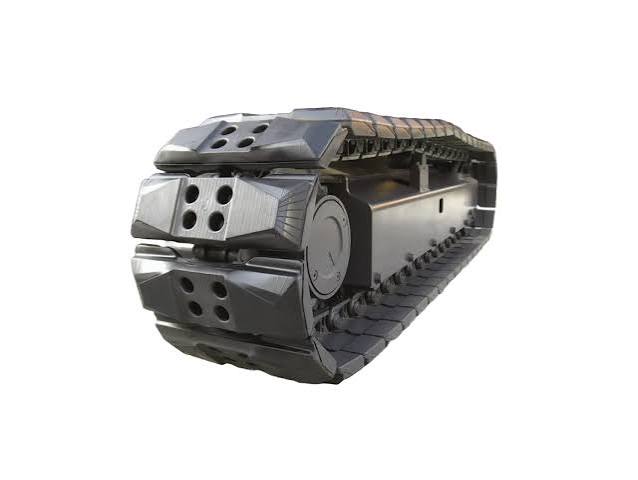

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge74 in
Max Travel Speed3.0 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth166 in
Max Reach Along Ground256 in
Max Loading Height206 in
Max Vertical Wall Digging Depth128 in
Max Cutting Height288 in
Shipping Length of Unit228 in
Shipping Height of Unit108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
