Sunward
ASV
PT-70

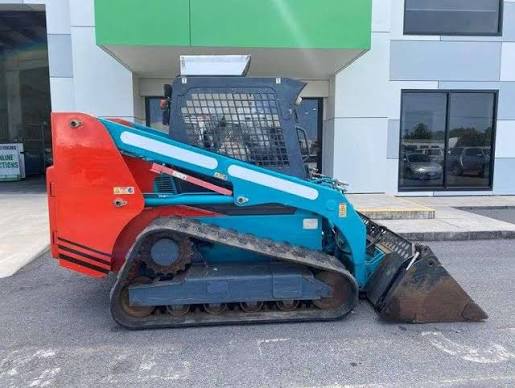

Compact Track Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 9,612 lb |
|---|---|
| Max Speed - high range | 6.9 mph |
| Fuel Capacity | 22.5 gal |
| Hydraulic System Fluid Capacity | 17.2 gal |
| Cooling System Fluid Capacity | 2.3 gal |
| Engine Oil Capacity | 3.5 gal |
Engine
| Engine Model | V3300DI |
|---|---|
| Power Measured @ | 2,600 rpm |
| Net Power | 73.7 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Peak Torque | 180 lb-ft |
Hydraulic System
| Pump Flow | 33.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,626 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 84 in |
| Reach at Max Lift and Dump | 28 in |
| Width Over Tracks | 79 in |
| Length with Bucket | 144 in |
| Clearance at Max Lift and Dump | 95 in |
| Turning Radius from Center - inc bucket | 91 in |
| Turning Radius from Center - machine rear | 66 in |
| Length - without Bucket | 110 in |
Undercarriage

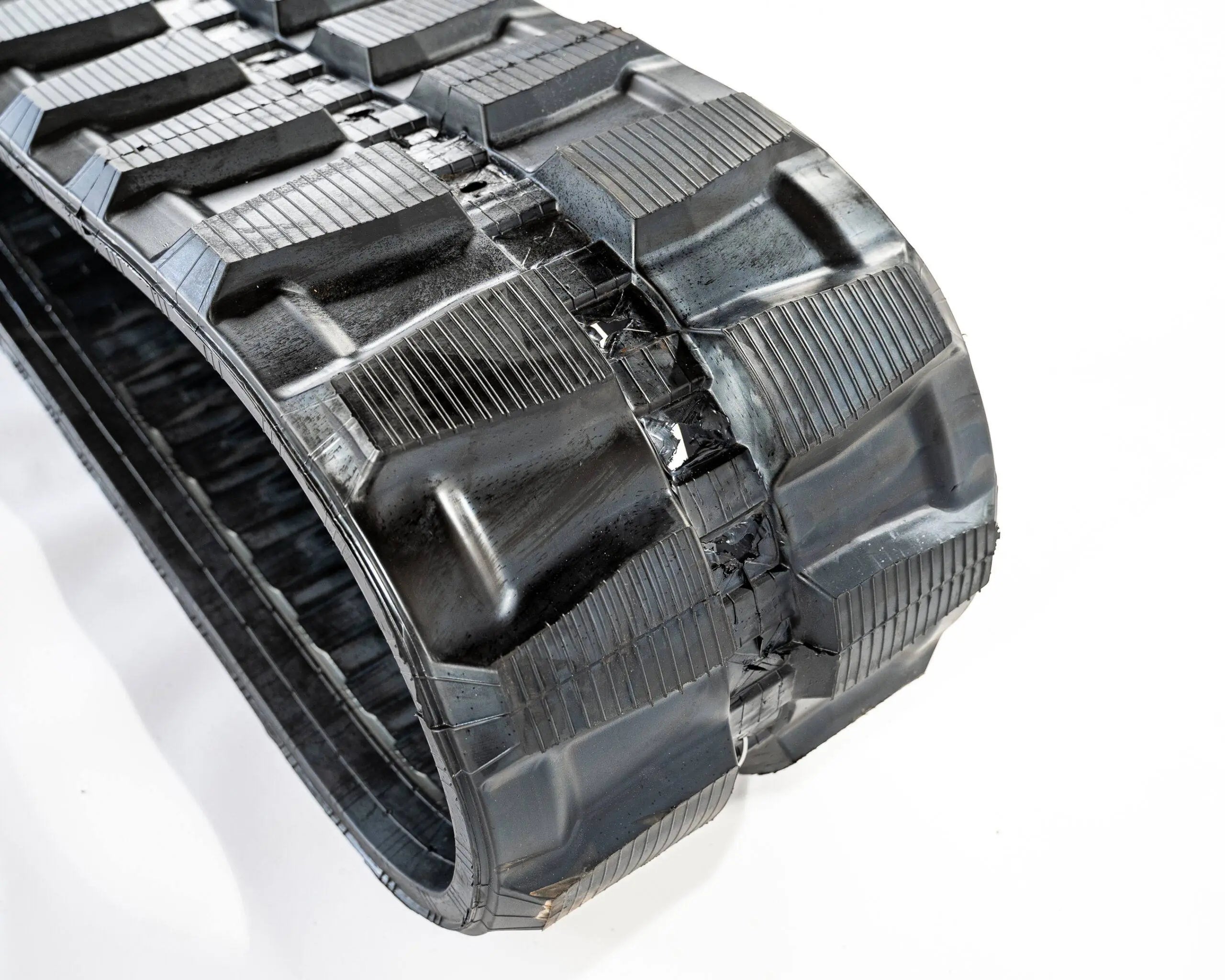

| Length of Track on Ground | 64 in |
|---|---|
| Width of Track | 18 in |
| Track Gauge | 61 in |
Loader
| Bucket Capacity | 0.90 yd³ |
|---|---|
| Tipping Angle | 7,562 ° |
| Operating Load | 2,646 lb |
| Breakout Force | — |
