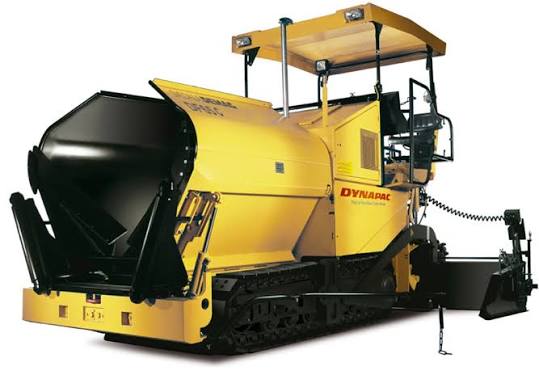

Svedala
Dynapac
F5CS
Asphalt Paver
17 specifications
Svedala
DF65P
- Operating Weight w/ Screed
- 18,519 lb
- Paving Width - max
- 162 in
- Gross Power
- 68.0 hp
- Length w/ Screed
- 196 in
1 / 5
Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight w/ Screed | 18,519 lb |
|---|---|
| Operating Voltage | 24 V |
Engine
| Engine Model | BF 4L 2011 |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 68.0 hp |
Dimensions
| Wheelbase | 64 in |
|---|---|
| Transport Height | 117 in |
| Tire Size | Front 460/250 Rear 365/85-R20 |
| Length w/ Screed | 196 in |
| Width w/ Hopper Open | 120 in |
Hopper/Paver
| Paving Width - max | 162 in |
|---|---|
| Paving Speed - max | 1.2 mph |
| Hopper Capacity | 5 lb |
| Travel Speed - max | 11.2 mph |
| Auger Diameter | 14 in |
| Paving Thickness - max | 11 in |
