Tadano

GR-1600XL

Rough Terrain Crane

Operating Weight
352,740 lb
Max Lift Capacity
15,873 lb
Gross Power
270.0 hp
All rough terrain cranes

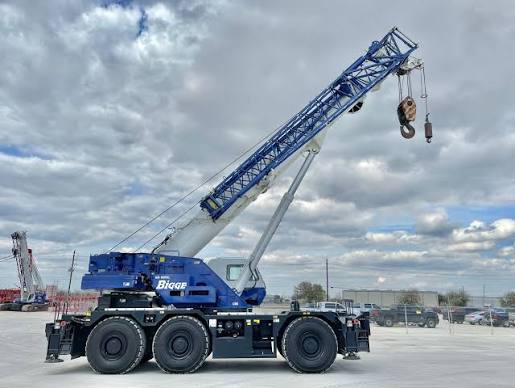

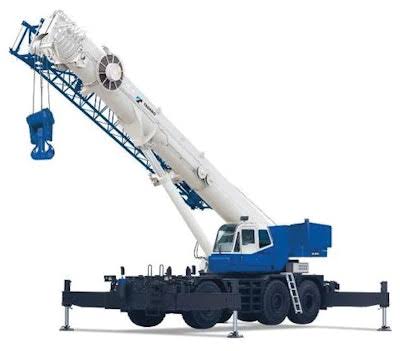

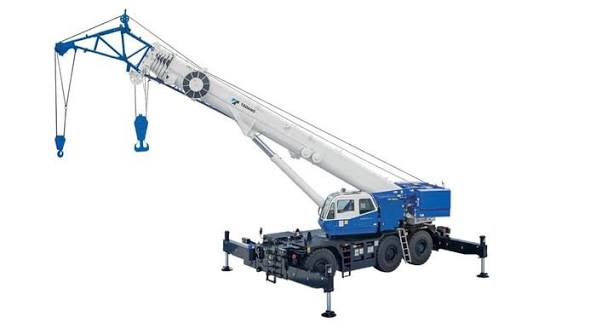

Tadano GR-1600XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: tadano.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight352,740 lb
Fuel Capacity79.2 gal
Tire Size26.5 R25
Operating Voltage24 V
Cooling System Fluid Capacity7.7 gal
DEF tank capacity10.0 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,000 rpm
Gross Power270.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins
Stroke5 in
Bore4 in
Air cleanerDry Type
Battery240 AH
Cooling methodLiquid pressurized

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase158 in
Transport Width131 in
Transport Height150 in
Transport Length639 in
Gradeability44.0 %
Carrier/Base Length386 in

Transmission

Transmission specifications
Number of Forward Gears5
Number of Reverse Gears2
Transmission TypeElectronically controlled full automatic
Max Travel Speed9.3 mph

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)160 (145.1) — Starting 2017 Model Year
Lift Height Ft. (m)259.2 (79) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity15,873 lb
Max Height @ Max Raise Angle - no jib7,878 in
Min Height @ Max Raise Angle1,686 in
Max Elevating Angle60 °
Number of Sections6
Min Operating Radius119 in
Max Operating Radius324 in
