Tadano
Grove
RT9150E
Rough Terrain Crane
32 specifications
1 / 5

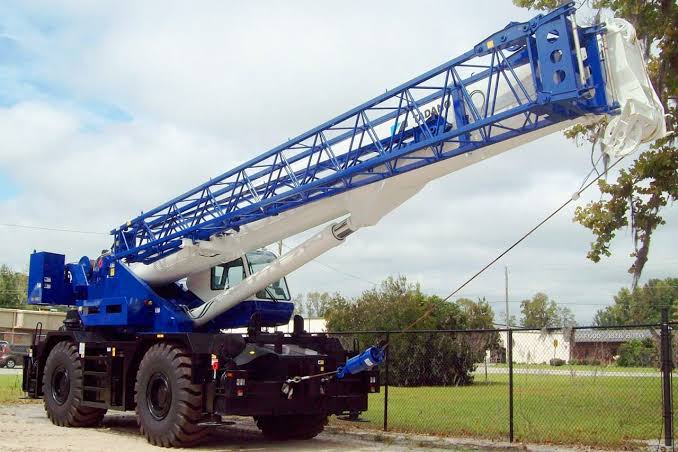

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 220,462 lb |
|---|---|
| Fuel Capacity | 79.2 gal |
| Tire Size | 29.5-25 34 PR |
| Operating Voltage | 24 V |
| Cooling System Fluid Capacity | 2.7 gal |
| DEF tank capacity | 10.0 gal |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 270.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 730 lb-ft |
| Engine Make | Cummins |
| Stroke | 5 in |
| Bore | 4 in |
| Air cleaner | Dry Type |
| Battery | 240 AH |
| Cooling method | Liquid pressurized |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 156 in |
| Transport Width | 121 in |
| Transport Height | 151 in |
| Transport Length | 567 in |
| Gradeability | 94.0 % |
| Carrier/Base Length | 339 in |
Transmission
| Number of Forward Gears | 6 |
|---|---|
| Number of Reverse Gears | 2 |
| Transmission Type | Electronically controlled full automatic |
| Max Travel Speed | 22.0 mph |
General Specifications
| Lift Capacity Tons (metric tons) | 100 (91) — Starting 2017 Model Year |
|---|---|
| Lift Height Ft. (m) | 212.3 (65) — Starting 2017 Model Year |
Boom
| Max Lift Capacity | 14,551 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,850 in |
| Min Height @ Max Raise Angle | 473 in |
| Max Elevating Angle | 60 ° |
| Number of Sections | 5 |
| Min Operating Radius | 107 in |
| Max Operating Radius | 288 in |
