Grove

RT9100

Rough Terrain Crane

Operating Weight
134,458 lb
Max Lift Capacity
200,000 lb
Max Speed - Forward
16.2 mph
Gross Power
249.5 hp
All rough terrain cranes

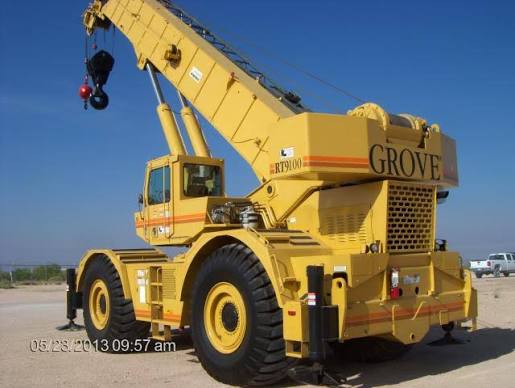

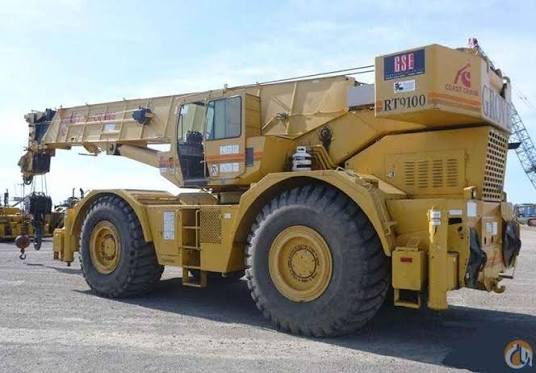

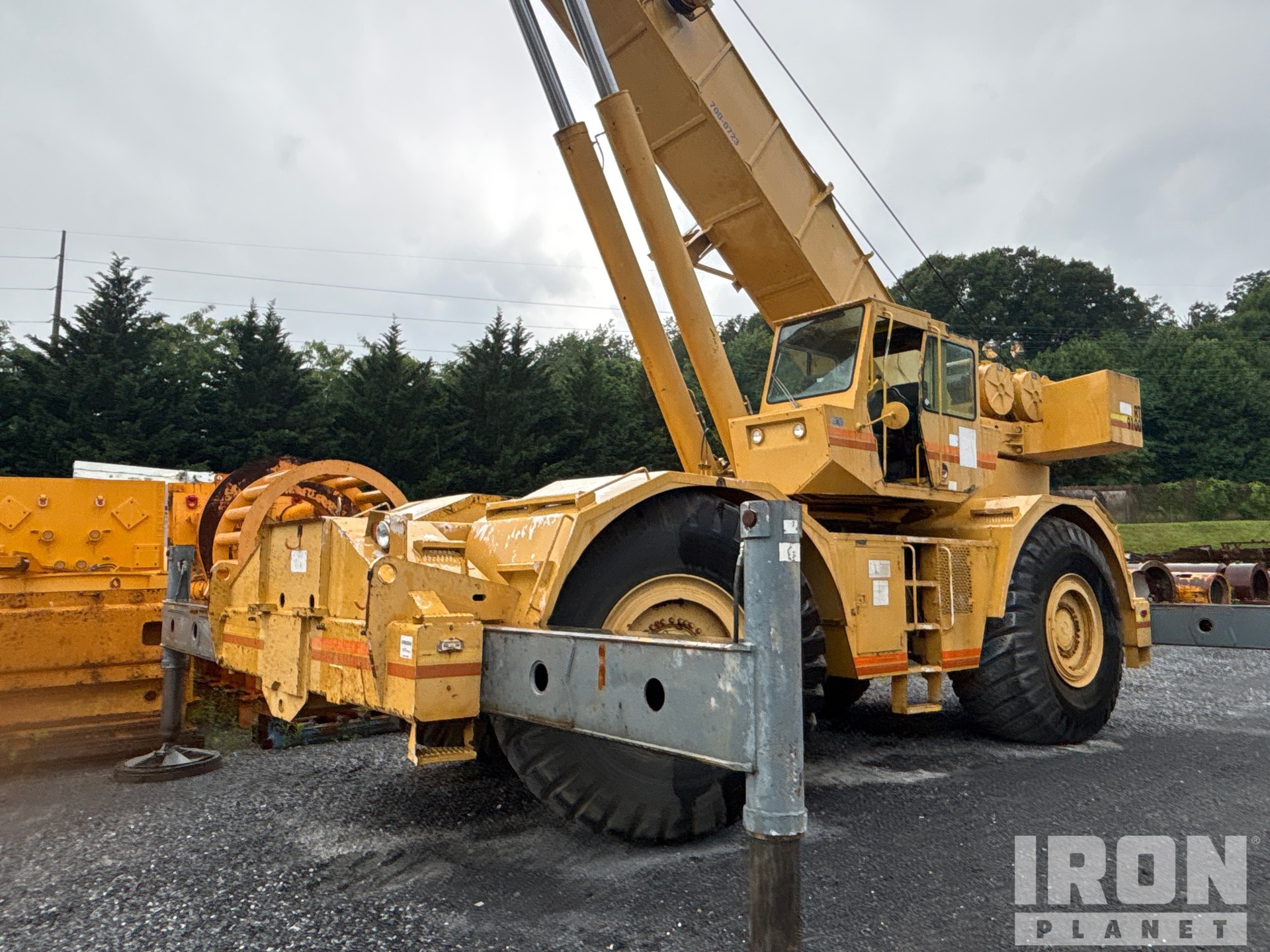

Grove RT9100 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight134,458 lb
Fuel Capacity100.0 gal
Tire Size33.25x35-32PR
Operating Voltage12 V
Hydraulic System Fluid Capacity374.9 gal

Engine

Engine specifications
Engine Model6CTA
Displacement507 in³
Power Measured @2,200 rpm
Gross Power249.5 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,500 rpm
Max Torque794 lb-ft

Weights

Weights specifications
Counterweight17,800 lb

Hydraulic System

Hydraulic System specifications
Maximum operating pressure2,500 psi
Pump Flow Capacity281.5 gal/min

Dimensions

Dimensions specifications
Wheelbase16 in
Transport Width149 in
Transport Height165 in
Transport Length547 in
Width w/ Outriggers Extended318 in
Upper Structure Tail Swing Radius172 in
Carrier/Base Length357 in

Transmission

Transmission specifications
Max Speed - Forward16.2 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission Typefull powershift

Boom

Boom specifications
Max Lift Capacity200,000 lb
Max Height @ Max Raise Angle - no jib1,368 in
Min Height @ Max Raise Angle432 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
Min Operating Radius120 in
Max Operating Radius1,200 in
