Link Belt

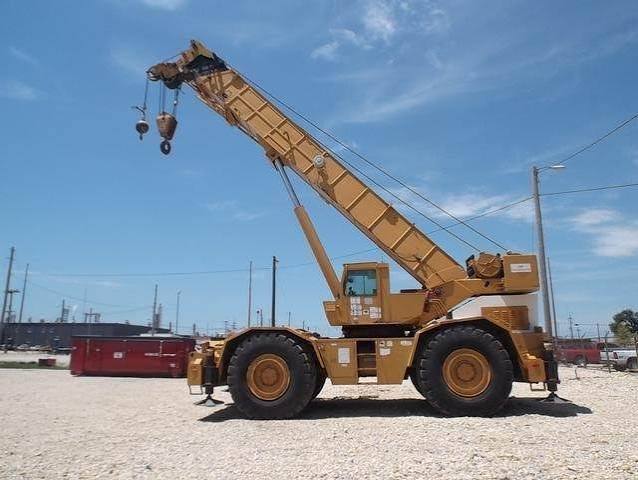

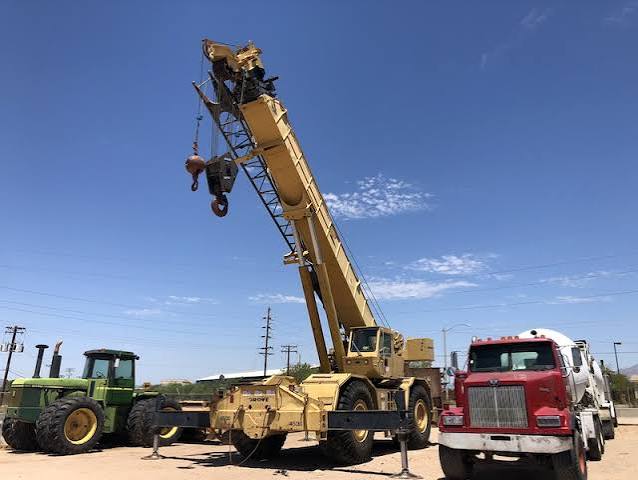

RTC-8090 II
Rough Terrain Crane
41 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 131,729 lb |
|---|---|
| Fuel Capacity | 100.0 gal |
| Tire Size | 33.25x35-32PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 375.0 gal |
| Alternator Supplied Amperage | 90 A |
| Cooling System Fluid Capacity | 14.6 gal |
Engine
| Engine Model | 6-7IT |
|---|---|
| Displacement | 426 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 230.0 hp |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 672 lb-ft |
| Bore | 4 in |
| Stroke | 5 in |
| Air cleaner | Dry type |
Hydraulic System
| Maximum operating pressure | 2,500 psi |
|---|---|
| Pump Flow Capacity | 317.0 gal/min |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Wheelbase | 16 in |
| Transport Width | 149 in |
| Transport Height | 161 in |
| Transport Length | 546 in |
| Width w/ Outriggers Extended | 318 in |
| Upper Structure Tail Swing Radius | 172 in |
| Carrier/Base Length | 357 in |
Transmission
| Max Speed - Forward | 18.0 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | remote mounted full powershift |
Boom
| Max Lift Capacity | 160,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,752 in |
| Min Height @ Max Raise Angle | 432 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,560 in |
