Link Belt

RTC-8080 II

Rough Terrain Crane

Operating Weight
81,126 lb
Max Lift Capacity
160,000 lb
Max Speed - Forward
17.1 mph
Gross Power
270.0 hp
All rough terrain cranes

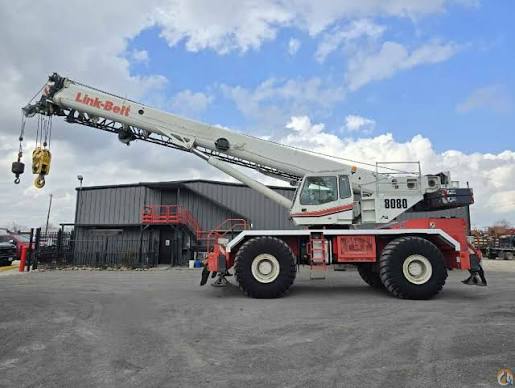

Link Belt RTC-8080 II Rough Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight81,126 lb
Fuel Capacity75.0 gal
Tire Size29.5x25
Operating Voltage12 V
Hydraulic System Fluid Capacity153.1 gal
Alternator Supplied Amperage160 A
Engine Oil Capacity4.6 gal
DEF tank capacity5.0 gal

Engine

Engine specifications
Engine ModelC6.6
Displacement409 in³
Power Measured @2,000 rpm
Gross Power270.0 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins QSB
Bore4 in
Stroke5 in
Emissions complianceTier 4F / Stage IV
Crankcase capacity3.8 gal

Dimensions

Dimensions specifications
Ground Clearance19 in
Wheelbase172 in
Transport Width115 in
Transport Height156 in
Transport Length606 in
Width w/ Outriggers Extended288 in
Upper Structure Tail Swing Radius167 in
Carrier/Base Length326 in

Transmission

Transmission specifications
Max Speed - Forward17.1 mph
Max Speed - Reverse17.1 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypePowershift

Boom

Boom specifications
Max Lift Capacity160,000 lb
Max Height @ Max Raise Angle - no jib1,796 in
Min Height @ Max Raise Angle564 in
Max Elevating Angle80 °
Number of Sections5
Swing Speed2 rpm
Min Operating Radius120 in
Max Operating Radius1,560 in
