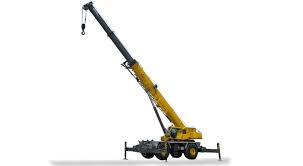

GroveGrove
RT980
Rough Terrain Crane
39 specifications
Grove
RT9150E
- Operating Weight
- 174,034 lb
- Max Lift Capacity
- 260,000 lb
- Max Speed - Forward
- 15.0 mph
- Gross Power
- 320.6 hp
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 174,034 lb |
|---|---|
| Fuel Capacity | 100.2 gal |
| Tire Size | 33.25x29-38bias |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 325.0 gal |
Engine
| Engine Model | QSC8.3L diesel |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 320.6 hp |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 1,020 lb-ft |
Weights
| Counterweight | 3,900 lb |
|---|
Hydraulic System
| Max operating pressure | 4,000 psi |
|---|
Dimensions
| Wheelbase | 195 in |
|---|---|
| Transport Width | 196 in |
| Transport Height | 26 in |
| Transport Length | 23 in |
| Gradeability | 70.0 % |
Transmission
| Max Speed - Forward | 15.0 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
| Transmission Type | full powershift |
General Specifications
| Lift Capacity Tons (metric tons) | 150 136) — Starting 2017 Model Year |
|---|---|
| Lift Height Ft. (m) | 197 (60) — Starting 2017 Model Year |
Boom
| Max Lift Capacity | 260,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 2,363 in |
| Min Height @ Max Raise Angle | 509 in |
| Max Elevating Angle | 78 ° |
| Number of Sections | 5 |
| Swing Speed | 2 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,680 in |
