Terex

A600C

Rough Terrain Crane

Operating Weight
118,000 lb
Max Lift Capacity
120,000 lb
Gross Power
205.2 hp
All rough terrain cranes

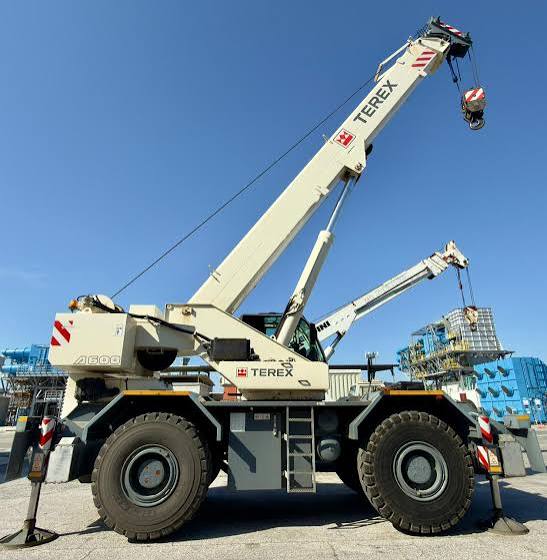

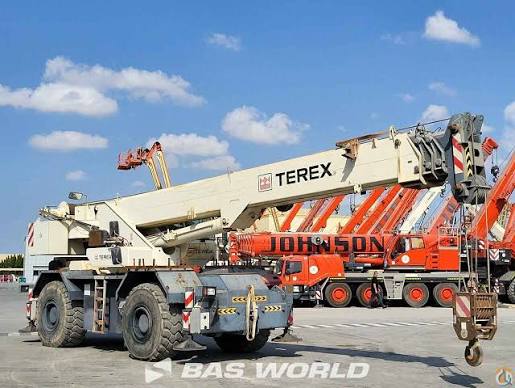

Terex A600C Rough Terrain Crane
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight118,000 lb
Fuel Capacity79.3 gal
Operating Voltage24 V
Alternator Supplied Amperage75 A

Engine

Engine specifications
Engine ModelQSB5.9-C
Displacement359 in³
Power Measured @2,200 rpm
Gross Power205.2 hp
Number of Cylinders6
Torque Measured @1,300 rpm
Max Torque685 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Tail Swing Radius169 in
Transport Width138 in
Transport Height122 in
Transport Length519 in

Transmission

Transmission specifications
Max Speed1.6 mph

Undercarriage

Undercarriage specifications
Width of Shoes36 in

Boom

Boom specifications
Max Lift Capacity120,000 lb
Max Height @ Max Raise Angle - no jib1,276 in
Min Height @ Max Raise Angle406 in
Max Elevating Angle78 °
