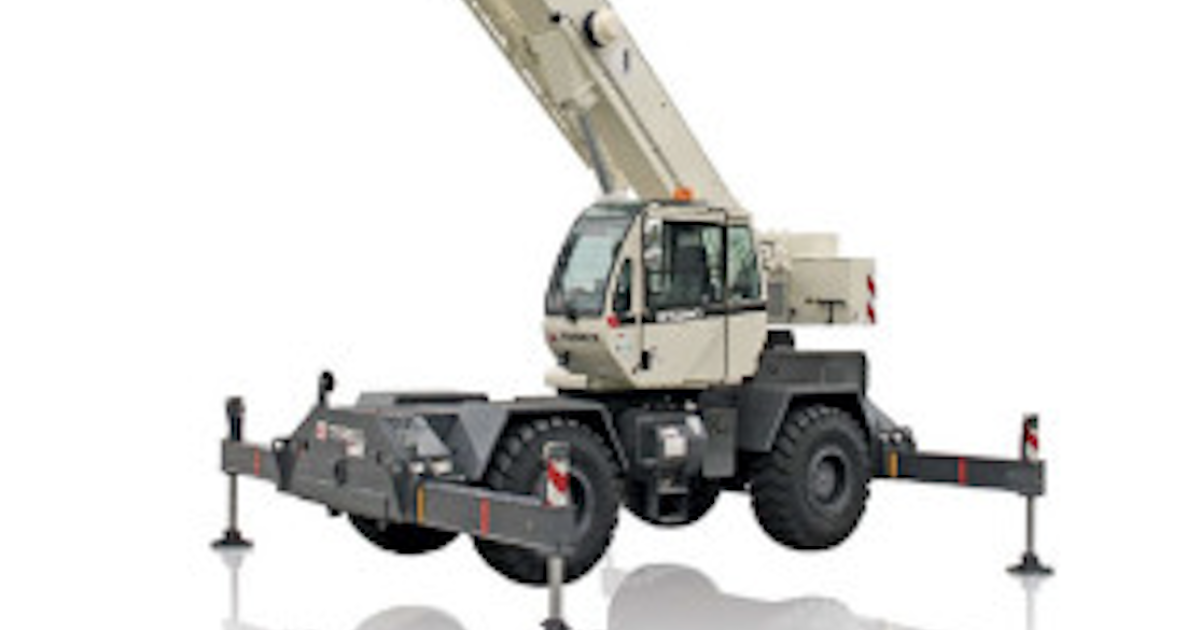

TerexTerex
A600
Rough Terrain Crane
31 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 142,000 lb |
|---|---|
| Fuel Capacity | 80.0 gal |
| Tire Size | 32.25 x 29 |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 304.0 gal |
| Alternator Supplied Amperage | 130 A |
Engine
| Engine Model | QSC-300 |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 300.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged & Charge air cooled |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 263 lb-ft |
| Engine Make | Cummins |
| Stroke | 5 in |
| Bore | 5 in |
| Air filter type | Dry type |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Wheelbase | 180 in |
| Transport Width | 139 in |
| Transport Height | 157 in |
| Transport Length | 591 in |
| Upper Structure Tail Swing Radius | 192 in |
| Carrier/Base Length | 320,001 in |
Transmission
| Number of Forward Gears | 6 |
|---|---|
| Number of Reverse Gears | 3 |
| Transmission Type | Full Power-Shift Transmission |
Boom
| Max Lift Capacity | 264,554 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,860 in |
| Min Height @ Max Raise Angle | 492 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 5 |
| Swing Speed | 2 rpm |
| Height | 1,860 in |
