Grove

RT875B XL

Rough Terrain Crane

Operating Weight
103,472 lb
Max Speed - Forward
24.9 mph
Gross Power
249.5 hp
All rough terrain cranes

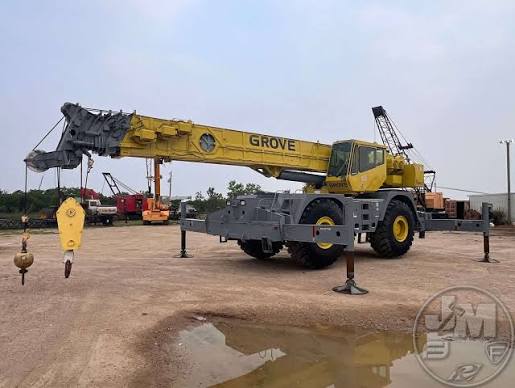

Grove RT875B XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranetrader.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight103,472 lb
Fuel Capacity80.1 gal
Tire Size33.25 x 29 - 32PR
Operating Voltage24 V
Hydraulic System Fluid Capacity200.0 gal

Engine

Engine specifications
Engine Model6CTA
Displacement507 in³
Power Measured @2,200 rpm
Gross Power249.5 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque794 lb-ft
Engine MakeCummins

Dimensions

Dimensions specifications
Wheelbase160 in
Transport Width125 in
Transport Height157 in
Transport Length516 in
Width w/ Outriggers Extended319 in
Upper Structure Tail Swing Radius169 in
Carrier/Base Length339,017 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypeFull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,654 in
Min Height @ Max Raise Angle418 in
Max Elevating Angle78 °
Number of Sections5
Swing Speed2 rpm
