Grove

RT62S

Rough Terrain Crane

Operating Weight
62,870 lb
Max Lift Capacity
50,000 lb
Max Speed - Forward
25.5 mph
All rough terrain cranes

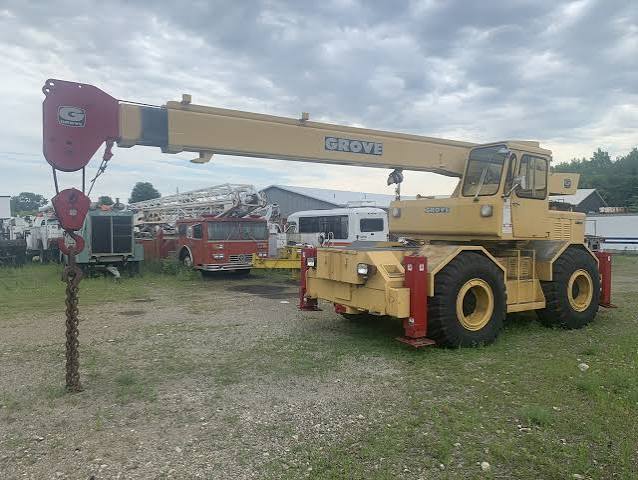

Grove RT62S Rough Terrain Crane
1 / 5
Image 1 of 5
Image: manitowoc.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight62,870 lb
Fuel Capacity93.0 gal
Tire Size21.00X25
Operating Voltage12 V
Hydraulic System Fluid Capacity180.0 gal

Engine

Engine specifications
Engine ModelCS-484
Displacement464 in³
Power Measured @2,600 rpm
Net Power165.0 hp
Torque Measured @1,700 rpm
Max Torque368 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Wheelbase12 in
Transport Width120 in
Transport Height146 in
Transport Length413 in
Width w/ Outriggers Extended223 in
Upper Structure Tail Swing Radius133 in
Carrier/Base Length288 in

Transmission

Transmission specifications
Max Speed - Forward25.5 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typeremote mounted full powershift

Boom

Boom specifications
Max Lift Capacity50,000 lb
Max Height @ Max Raise Angle - no jib720 in
Min Height @ Max Raise Angle288 in
Max Elevating Angle75 °
Number of Sections3
Swing Speed3 rpm
Min Operating Radius144 in
Max Operating Radius684 in
