Tadano

GR-1200XL

Rough Terrain Crane

Operating Weight
264,555 lb
Max Lift Capacity
15,873 lb
Gross Power
270.0 hp
All rough terrain cranes

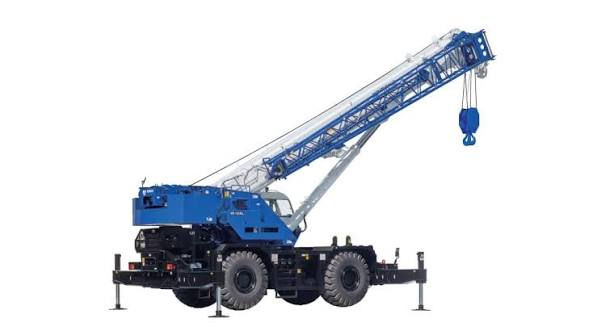

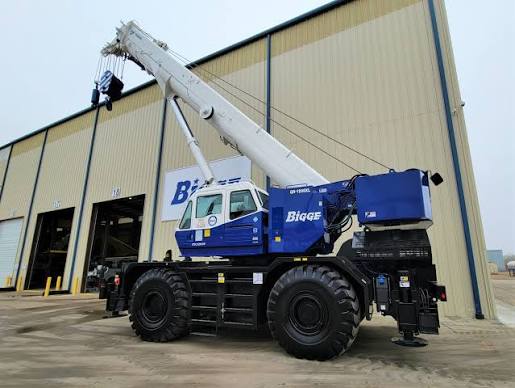

Tadano GR-1200XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: tadano.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight264,555 lb
Fuel Capacity79.2 gal
Tire Size29.5-25 34 PR
Operating Voltage24 V
Cooling System Fluid Capacity2.7 gal
DEF tank capacity10.0 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,000 rpm
Gross Power270.0 hp
AspirationTurbocharged
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins
Stroke5 in
Bore4 in
Air cleanerDry Type
Battery240 AH
Cooling methodLiquid pressurized

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase156 in
Transport Width121 in
Transport Height151 in
Transport Length570 in
Gradeability84.0 %
Carrier/Base Length339 in

Transmission

Transmission specifications
Number of Forward Gears5
Number of Reverse Gears2
Transmission TypeElectronically controlled full automatic
Max Travel Speed12.0 mph

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)120 (109) — Starting 2017 Model Year
Lift Height Ft. (m)241.8 (74) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity15,873 lb
Max Height @ Max Raise Angle - no jib2,206 in
Min Height @ Max Raise Angle473 in
Max Elevating Angle60 °
Number of Sections6
Min Operating Radius107 in
Max Operating Radius288 in
