Tadano

GR-300XL

Rough Terrain Crane

Max Speed - Forward
29.3 mph
Gross Power
215.0 hp
All rough terrain cranes

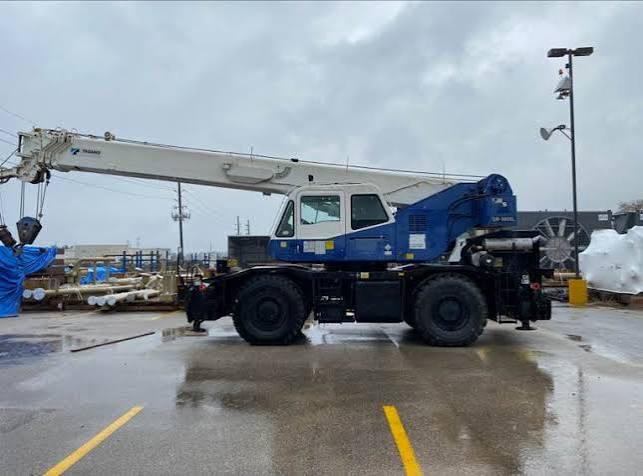

Tadano GR-300XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Tire Size20.5-25 24PR
Operating Voltage24 V
Hydraulic System Fluid Capacity100.4 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,500 rpm
Gross Power215.0 hp
AspirationTurbocharged
Torque Measured @1,600 rpm
Max Torque630 lb-ft
Engine MakeCummins
Bore4 in
Stroke5 in
Air cleanerDry type replaceable element
Cooling systemLiquid pressurized recirculating by-pass
Radiator Core typeFin and tube core thermostat controlled
Fuel FilterFull flow with replaceable element
Oil FilterFull flow with replaceable element

Dimensions

Dimensions specifications
Wheelbase12 in
Transport Width108 in
Transport Height139 in
Transport Length443 in
Width w/ Outriggers Extended248 in
Upper Structure Tail Swing Radius132 in
Carrier/Base Length289 in

Transmission

Transmission specifications
Max Speed - Forward29.3 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypeFull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,222 in
Min Height @ Max Raise Angle383 in
Max Elevating Angle81 °
Number of Sections4
Swing Speed3 rpm
