Tadano

GR-350XL-2

Rough Terrain Crane

Max Speed - Forward
31.1 mph
Gross Power
214.6 hp
All rough terrain cranes

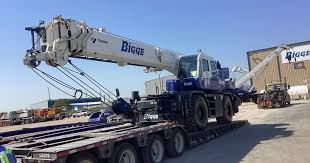

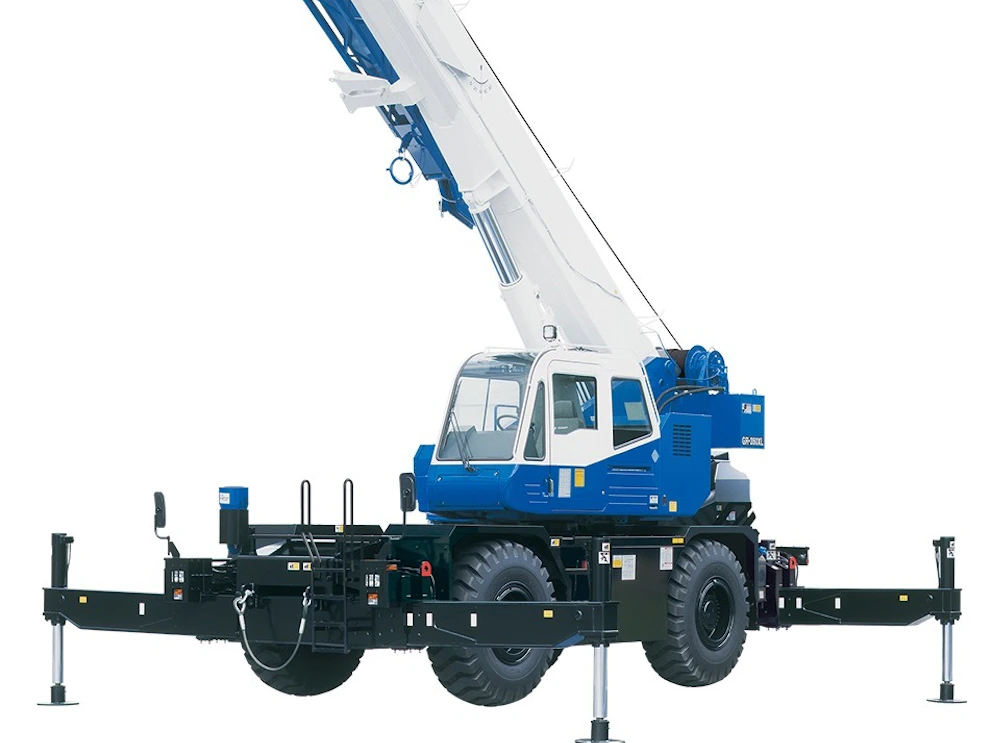

Tadano GR-350XL-2 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Tire Size20.5-25
Operating Voltage24 V
Hydraulic System Fluid Capacity100.4 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,500 rpm
Gross Power214.6 hp
Number of Cylinders6
Torque Measured @1,600 rpm
Max Torque622 lb-ft
Engine MakeCummins
Stroke5 in
Bore4 in
Emission Tier LevelTier 4i
Air cleanerDry type replaceable element
Cooling methodLiquid pressurized recirculating by-pass
Fuel FilterFull flow with replaceable element
Oil FilterFull flow with replaceable element

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase138 in
Transport Width107 in
Transport Height139 in
Transport Length443 in
Width w/ Outriggers Extended248 in
Upper Structure Tail Swing Radius132 in
Carrier/Base Length287,403 in

Transmission

Transmission specifications
Max Speed - Forward31.1 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypeFull powershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,222 in
Min Height @ Max Raise Angle383 in
Max Elevating Angle81 °
Number of Sections4
Swing Speed3 rpm
