Tadano

GR-550XL

Rough Terrain Crane

Max Lift Capacity
110,000 lb
Max Speed - Forward
31.1 mph
Gross Power
269.6 hp
All rough terrain cranes

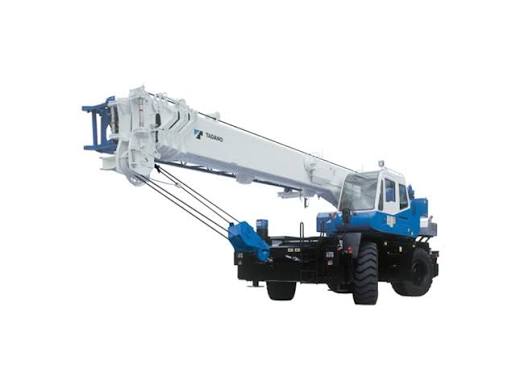

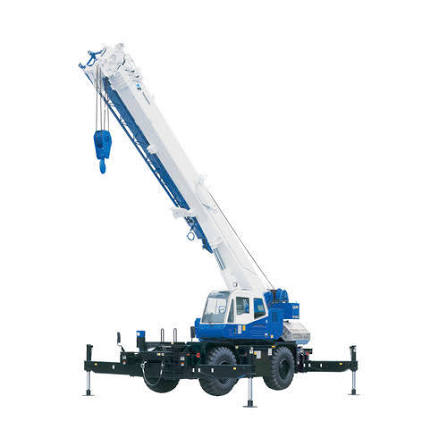

Tadano GR-550XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: tadano.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Operating Voltage24 V
Cooling System Fluid Capacity7.4 gal
DEF tank capacity10.1 gal

Engine

Engine specifications
Engine ModelQSB6.7
Displacement409 in³
Power Measured @2,000 rpm
Gross Power269.6 hp
Number of Cylinders6
Torque Measured @1,500 rpm
Max Torque730 lb-ft
Engine MakeCummins
Stroke5 in
Bore4 in
Engine TypeDirect injection diesel
Emission Tier LevelTier 4
Air cleanerDry type replaceable element
Cooling methodLiquid pressurized
Fuel FilterFull flow with replaceable element
Oil FilterFull flow with replaceable element

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase150 in
Transport Width118 in
Transport Height148 in
Transport Length515 in
Width w/ Outriggers Extended276 in
Upper Structure Tail Swing Radius163 in

Transmission

Transmission specifications
Max Speed - Forward31.1 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypeElectronically controlled

General Specifications

General Specifications specifications
Lift Capacity Tons (metric tons)55 (50) — Starting 2017 Model Year
Lift Height Ft. (m)163.9 (50) — Starting 2017 Model Year

Boom

Boom specifications
Max Lift Capacity110,000 lb
Max Height @ Max Raise Angle - no jib1,367 in
Min Height @ Max Raise Angle422 in
Max Elevating Angle81 °
Number of Sections4
