Tadano

TR-280XL

Rough Terrain Crane

Max Speed - Forward
31.2 mph
All rough terrain cranes

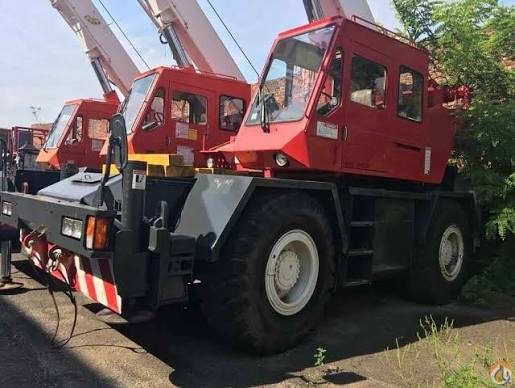

Tadano TR-280XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity66.1 gal
Tire Size20.5 X 25-20 PR
Operating Voltage24 V
Hydraulic System Fluid Capacity115.8 gal
Cooling System Fluid Capacity3.5 gal

Engine

Engine specifications
Engine Model6D14T
Displacement400 in³
Power Measured @2,600 rpm
Net Power179.7 hp
Torque Measured @1,600 rpm
Max Torque420 lb-ft
Engine MakeMitsubishi
Bore4 in
Stroke5 in
Engine TypeDirect Injection Diesel
Air cleanerDry type replacement element (dual)
Cooling systemLiquid pressurized recirculating by-pass
Radiator Core typeFin and tube core thermostat controlled
Fuel FilterFull flow with replacement element
Oil FilterFull flow with replacement element

Dimensions

Dimensions specifications
Wheelbase122 in
Transport Width103 in
Transport Height137 in
Transport Length432 in
Width w/ Outriggers Extended245 in
Upper Structure Tail Swing Radius70 in
Carrier/Base Length266,142 in

Transmission

Transmission specifications
Max Speed - Forward31.2 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypePowershift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib867 in
Min Height @ Max Raise Angle355 in
Max Elevating Angle82 °
Number of Sections3
Swing Speed3 rpm
