Tadano

TR-300XL-3

Rough Terrain Crane

Max Speed - Forward
29.3 mph
Gross Power
246.8 hp
All rough terrain cranes

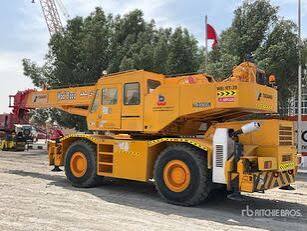

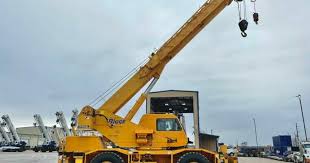

Tadano TR-300XL-3 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: cranenetwork.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Tire Size20.5-25 24PR
Operating Voltage24 V
Hydraulic System Fluid Capacity139.3 gal
Cooling System Fluid Capacity3.5 gal

Engine

Engine specifications
Engine Model6D16-TLEA
Displacement461 in³
Power Measured @2,800 rpm
Gross Power246.8 hp
Number of Cylinders6
AspirationDirect injection
Torque Measured @1,400 rpm
Max Torque521 lb-ft
Engine MakeMitsubishi
Bore5 in
Stroke5 in
Air cleanerDry type replaceable element
Cooling systemLiquid pressurized recirculating bypass
Radiator Core typeFin and tube core thermostat controlled
Fuel FilterFull flow with replaceable element
Oil FilterFull flow with replaceable element

Dimensions

Dimensions specifications
Wheelbase141 in
Transport Width108 in
Transport Height138 in
Transport Length463 in
Width w/ Outriggers Extended248 in
Upper Structure Tail Swing Radius155 in
Carrier/Base Length291,143 in

Transmission

Transmission specifications
Max Speed - Forward29.3 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypeElectronically controlled full automatic transmission

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,182 in
Min Height @ Max Raise Angle373 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed3 rpm
