Tadano

TR-500XL-3

Rough Terrain Crane

Max Speed - Forward
24.9 mph
Gross Power
246.8 hp
All rough terrain cranes

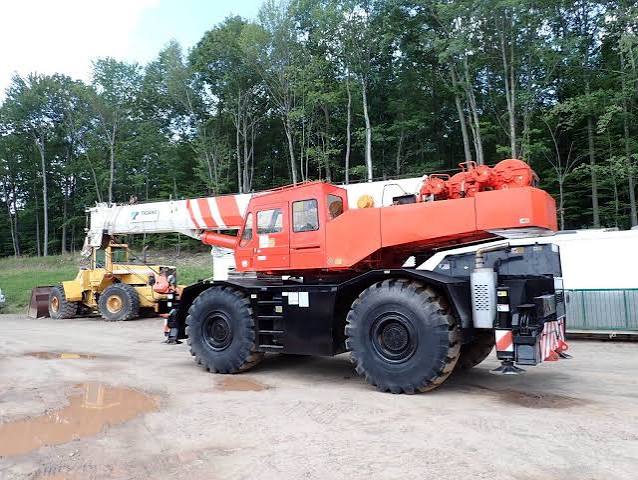

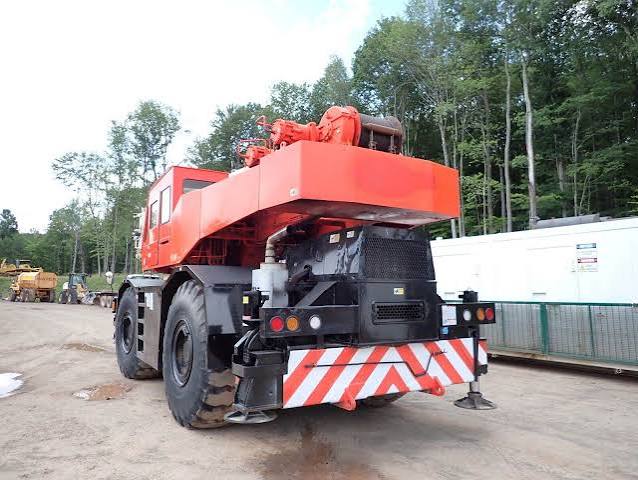

Tadano TR-500XL-3 Rough Terrain Crane
1 / 5
Image 1 of 5
Image: oldforgepower.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Tire Size29.5-25-22PR
Operating Voltage24 V
Hydraulic System Fluid Capacity195.5 gal
Cooling System Fluid Capacity3.5 gal

Engine

Engine specifications
Engine Model6D16-TLEA
Displacement460 in³
Power Measured @2,800 rpm
Gross Power246.8 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque521 lb-ft
Engine MakeMitsubishi
Stroke5 in
Bore5 in
Engine TypeDirect injection diesel
Air cleanerDry type replaceable element
Cooling systemLiquid pressurized recirculating by-pass
Radiator Core typeFin and tube core thermostat controlled
Fuel FilterFull flow with replaceable element
Oil FilterFull flow with replaceable element

Dimensions

Dimensions specifications
Wheelbase156 in
Transport Width131 in
Transport Height149 in
Transport Length522 in
Width w/ Outriggers Extended284 in
Upper Structure Tail Swing Radius163 in
Carrier/Base Length320,080 in

Transmission

Transmission specifications
Max Speed - Forward24.9 mph
Number of Forward Gears6
Number of Reverse Gears2
Transmission TypeFull powershift Automatic

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,327 in
Min Height @ Max Raise Angle418 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
