Tadano

TR-600XL

Rough Terrain Crane

Max Speed - Forward
21.8 mph
Gross Power
186.5 hp
All rough terrain cranes

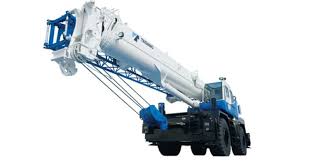

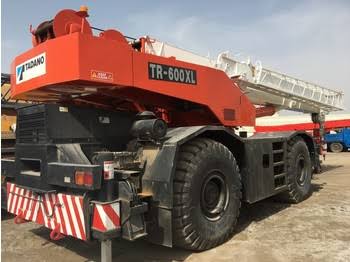

Tadano TR-600XL Rough Terrain Crane
1 / 5
Image 1 of 5
Image: auctiontime.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity79.3 gal
Tire Size29.5 x 25 - 22PR
Operating Voltage24 V
Hydraulic System Fluid Capacity195.0 gal
Cooling System Fluid Capacity5.9 gal

Engine

Engine specifications
Engine Model6D22
Displacement680 in³
Power Measured @2,300 rpm
Gross Power186.5 hp
Net Power179.7 hp
AspirationNaturally Aspirated
Torque Measured @1,400 rpm
Max Torque463 lb-ft
Engine MakeMitsubishi
Bore5 in
Stroke6 in
Engine TypeDirect injection Diesel
Air cleanerDry type replacement element
Radiator Core typeFin and tube core thermostat controlled
Fuel FilterFull flow with replacement element
Oil FilterFull flow with replacement element

Dimensions

Dimensions specifications
Wheelbase152 in
Transport Width131 in
Transport Height150 in
Transport Length535 in
Width w/ Outriggers Extended300 in
Upper Structure Tail Swing Radius162 in
Carrier/Base Length321,457 in

Transmission

Transmission specifications
Max Speed - Forward21.8 mph
Number of Forward Gears6
Number of Reverse Gears6
Transmission TypePower shift

Boom

Boom specifications
Max Height @ Max Raise Angle - no jib1,343 in
Min Height @ Max Raise Angle422 in
Max Elevating Angle80 °
Number of Sections4
Swing Speed2 rpm
