Takeuchi

TB014

Mini Excavator

Operating Weight
3,208 lb
Max Digging Depth
84 in
Net Power
12.0 hp
All mini excavators

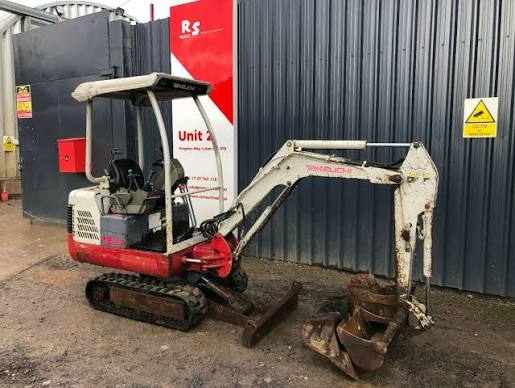

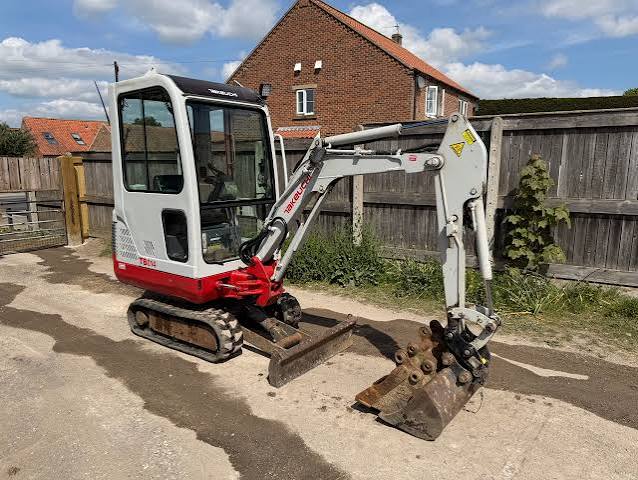

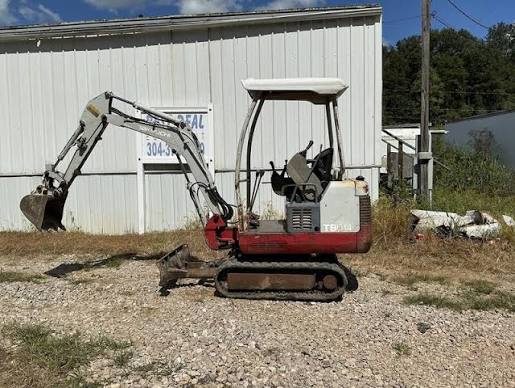

Takeuchi TB014 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,208 lb
Fuel Capacity6.1 gal
Hydraulic Pump Flow Capacity11.4 gal/min
Hydraulic System Fluid Capacity8.7 gal
Hydraulic System Relief Valve Pressure2,631 psi
Operating Voltage12 V
Alternator Supplied Amperage20 A
Engine Oil Capacity3.0 gal
Cooling System Fluid Capacity3.3 gal

Engine

Engine specifications
Engine Model3TNE-68
Displacement48 in³
Power Measured @2,100 rpm
Net Power12.0 hp
Number of Cylinders3
Torque Measured @1,700 rpm
Max Torque38 lb-ft

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab90 in
Length of Track on Ground41 in
Tail Swing Radius43 in
Width to Outside of Tracks146 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side3
Max Travel Speed1.4 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth84 in
Max Reach Along Ground149 in
Max Vertical Wall Digging Depth67 in
Max Loading Height106 in
Max Cutting Height146 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
