Takeuchi

TB015

Mini Excavator

Operating Weight
3,307 lb
Max Digging Depth
88 in
Net Power
16.0 hp
All mini excavators

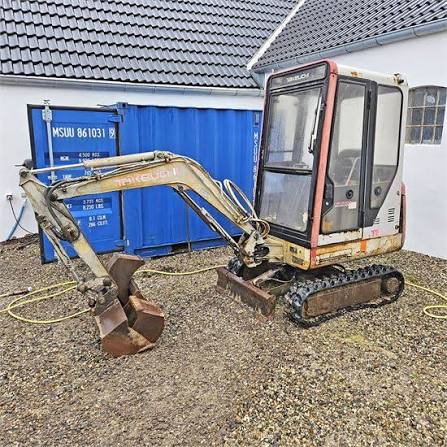

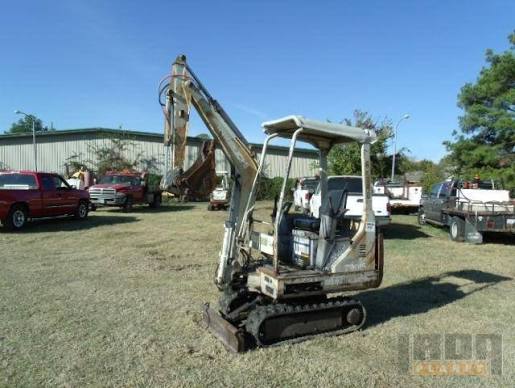

Takeuchi TB015 Mini Excavator
1 / 5
Image 1 of 5
Image: tractorzoom.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,307 lb
Fuel Capacity6.1 gal
Hydraulic System Fluid Capacity7.9 gal
Hydraulic System Relief Valve Pressure27,748 psi

Engine

Engine specifications
Displacement54 in³
Power Measured @2,550 rpm
Net Power16.0 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab91 in
Length of Track on Ground41 in
Tail Swing Radius43 in
Width to Outside of Tracks39 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side3
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth88 in
Max Reach Along Ground145 in
Max Vertical Wall Digging Depth85 in
Max Loading Height102 in
Max Cutting Height143 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
