Takeuchi

TB045

Mini Excavator

Operating Weight
10,092 lb
Max Digging Depth
138 in
Net Power
43.4 hp
All mini excavators

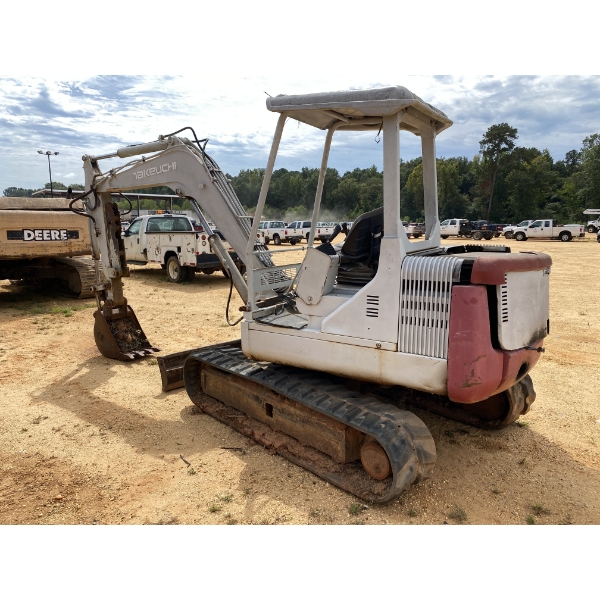

Takeuchi TB045 Mini Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,092 lb
Fuel Capacity15.3 gal
Hydraulic Pump Flow Capacity29.6 gal/min
Hydraulic System Relief Valve Pressure2,845 psi

Engine

Engine specifications
Displacement158 in³
Power Measured @2,000 rpm
Net Power43.4 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance133 in
Height - Top of Cab102 in
Tail Swing Radius60 in
Width to Outside of Tracks72 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Shoe Size15 in
Number of Carrier Rollers per Side5

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth138 in
Max Reach Along Ground226 in
Max Vertical Wall Digging Depth107 in
Max Loading Height150 in
Max Cutting Height212 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
