Takeuchi

TB070

Mini Excavator

Operating Weight
16,050 lb
Max Digging Depth
168 in
Net Power
56.0 hp
All mini excavators

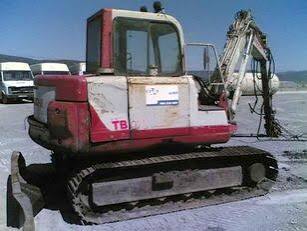

Takeuchi TB070 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,050 lb
Fuel Capacity30.6 gal
Hydraulic Pump Flow Capacity36.0 gal/min
Hydraulic System Fluid Capacity34.9 gal
Hydraulic System Relief Valve Pressure3,982 psi
Engine Oil Capacity11.6 gal
Cooling System Fluid Capacity12.7 gal

Engine

Engine specifications
Engine ModelBD3004
Displacement180 in³
Power Measured @2,300 rpm
Net Power56.0 hp
Number of Cylinders4
Torque Measured @1,600 rpm
Max Torque138 lb-ft
Engine Make2311

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab102 in
Tail Swing Radius70 in
Width to Outside of Tracks90 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side5
Max Travel Speed3.4 mph
Shoe Size22 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth168 in
Max Reach Along Ground272 in
Max Vertical Wall Digging Depth138 in
Max Loading Height197 in
Max Cutting Height276 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
