Takeuchi

TB145

Mini Excavator

Operating Weight
10,761 lb
Max Digging Depth
150 in
Net Power
37.5 hp
All mini excavators

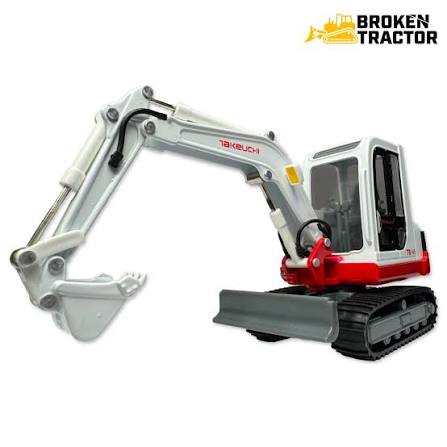

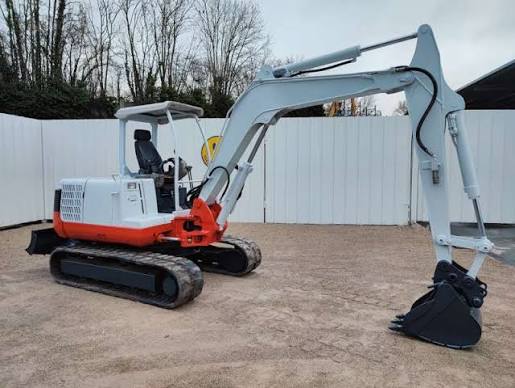

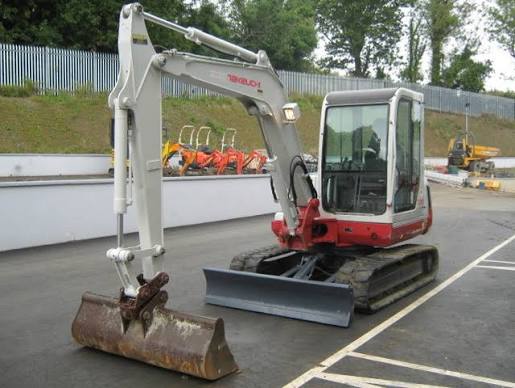

Takeuchi TB145 Mini Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,761 lb
Fuel Capacity19.3 gal
Hydraulic Pump Flow Capacity29.6 gal/min
Hydraulic System Fluid Capacity30.4 gal
Hydraulic System Relief Valve Pressure3,000 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.3 gal
Cooling System Fluid Capacity1.8 gal

Engine

Engine specifications
Engine Model4TNV88-QTB
Displacement134 in³
Power Measured @2,300 rpm
Net Power37.5 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque107 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab102 in
Tail Swing Radius59 in
Width to Outside of Tracks72 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Number of Track Rollers per Side5
Max Travel Speed3.1 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth150 in
Max Reach Along Ground238 in
Max Vertical Wall Digging Depth120 in
Max Loading Height165 in
Shipping Length of Unit222 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
