Takeuchi

TB175

Mini Excavator

Operating Weight
17,230 lb
Max Digging Depth
182 in
Net Power
58.3 hp
All mini excavators

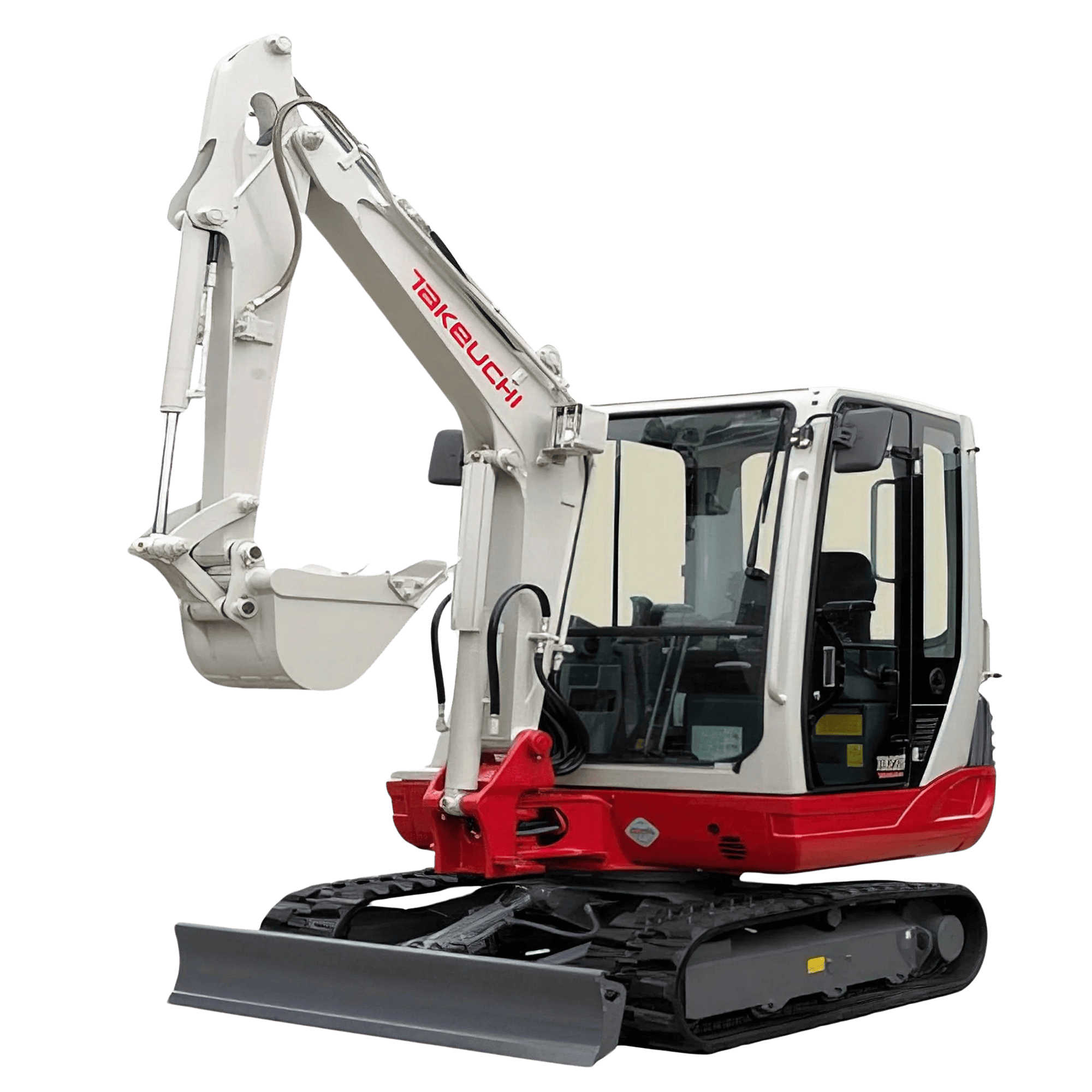

Takeuchi TB175 Mini Excavator
1 / 5
Image 1 of 5
Image: shop.equipmentshare.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,230 lb
Fuel Capacity31.7 gal
Hydraulic Pump Flow Capacity36.6 gal/min
Hydraulic System Fluid Capacity34.9 gal
Hydraulic System Relief Valve Pressure3,989 psi
Operating Voltage24 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.7 gal
Cooling System Fluid Capacity2.5 gal

Engine

Engine specifications
Engine Model4TNV98
Displacement202 in³
Power Measured @2,100 rpm
Net Power58.3 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque185 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab102 in
Tail Swing Radius69 in
Width to Outside of Tracks90 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side5
Max Travel Speed3.4 mph
Shoe Size18 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth182 in
Max Reach Along Ground285 in
Max Vertical Wall Digging Depth152 in
Max Loading Height206 in
Shipping Length of Unit264 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
