Takeuchi

TB180FR

Mini Excavator

Operating Weight
18,370 lb
Max Digging Depth
180 in
Net Power
60.5 hp
All mini excavators

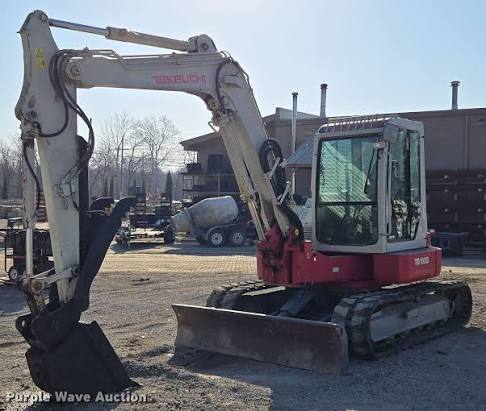

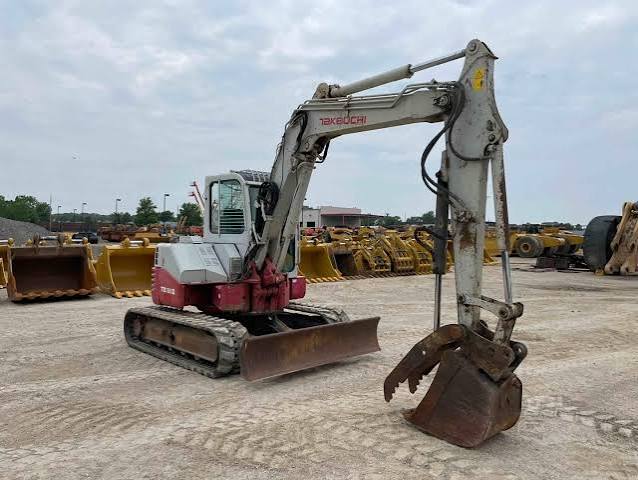

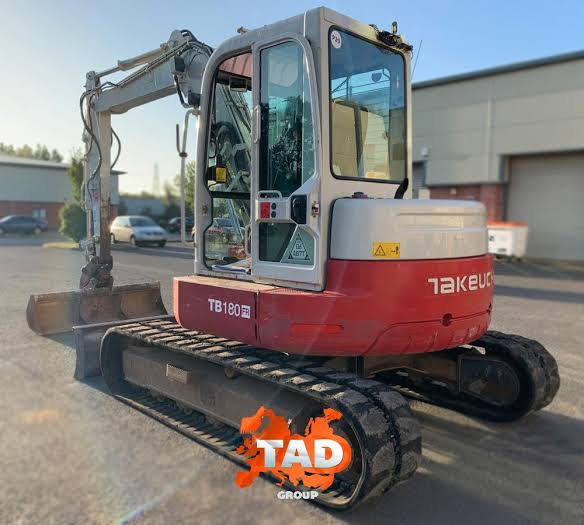

Takeuchi TB180FR Mini Excavator
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,370 lb
Fuel Capacity24.3 gal
Hydraulic Pump Flow Capacity34.8 gal/min
Hydraulic System Fluid Capacity18.7 gal
Hydraulic System Relief Valve Pressure3,989 psi
Operating Voltage12 V
Alternator Supplied Amperage55 A
Engine Oil Capacity0.7 gal
Cooling System Fluid Capacity0.7 gal

Engine

Engine specifications
Engine Model4TNV98
Displacement202 in³
Power Measured @2,200 rpm
Net Power60.5 hp
Number of Cylinders4
Torque Measured @1,320 rpm
Max Torque184 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab109 in
Tail Swing Radius49 in
Width to Outside of Tracks91 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Number of Track Rollers per Side5
Max Travel Speed3.4 mph
Shoe Size18 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth180 in
Max Reach Along Ground277 in
Max Loading Height183 in
Shipping Length of Unit244 in
Shipping Height of Unit109 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
