Takeuchi

TB250

Mini Excavator

Operating Weight
10,781 lb
Max Digging Depth
138 in
Net Power
38.1 hp
All mini excavators

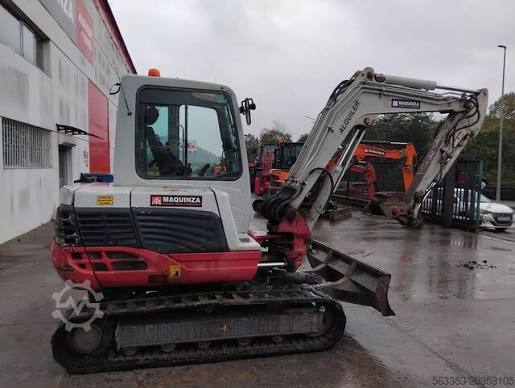

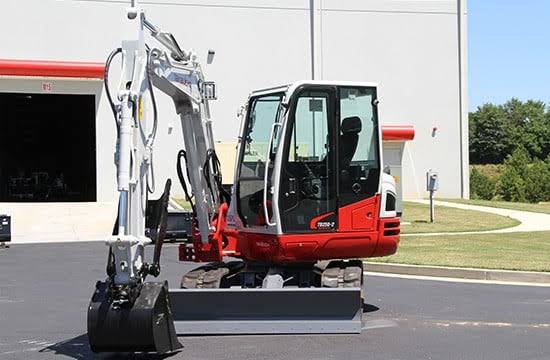

Takeuchi TB250 Mini Excavator
1 / 5
Image 1 of 5
Image: takeuchi-us.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,781 lb
Hydraulic Pump Flow Capacity38.6 gal/min
Hydraulic System Relief Valve Pressure3,046 psi

Engine

Engine specifications
Engine Model4TNV88
Displacement133 in³
Power Measured @2,400 rpm
Net Power38.1 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance13 in
Tail Swing Radius73 in
Width to Outside of Tracks73 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.3 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth138 in
Max Reach Along Ground226 in
Max Vertical Wall Digging Depth110 in
Max Loading Height157 in
Shipping Length of Unit216 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³
