Takeuchi

TL140

Compact Track Loader

Operating Weight
9,769 lb
Max Speed - high range
6.6 mph
Displacement
188 in³
Gross Power
81.0 hp
All compact track loaders

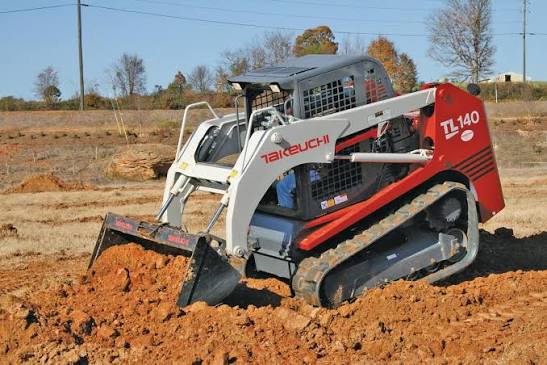

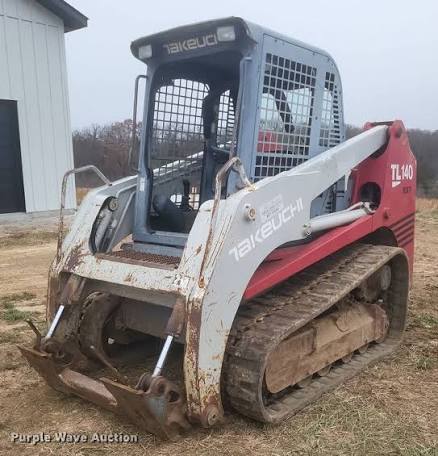

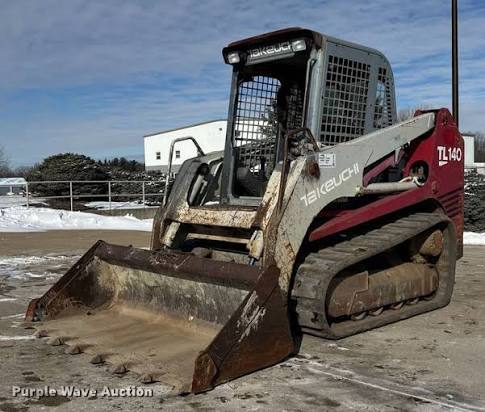

Takeuchi TL140 Compact Track Loader
1 / 5
Image 1 of 5
Image: forconstructionpros.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,769 lb
Max Speed - high range6.6 mph
Max Speed - low range4.6 mph
Max Speed4.6 mph
Fuel Capacity23.8 gal
Hydraulic System Fluid Capacity13.7 gal
Cooling System Fluid Capacity4.0 gal
Operating Voltage12 V
Alternator Supplied Amperage50 A
Engine Oil Capacity2.6 gal
Static Tipping Load5,952 lb
Breakout Force Bucket7,403 lb

Engine

Engine specifications
Engine Model4JG1T
Displacement188 in³
Power Measured @2,500 rpm
Gross Power81.0 hp
Number of Cylinders4
Torque Measured @1,800 rpm
Peak Torque193 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow19.8 gal/min
Relief Valve Pressure2,988 psi
Dump Time3.2 s
Lower Time3.0 s
Raise Time4.3 s

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab90 in
Reach at Max Lift and Dump35 in
Length with Bucket on Ground91 in
Width Over Tracks71 in
Length with Bucket146 in
Clearance at Max Lift and Dump124 in
Turning Radius from Center - inc bucket90 in
Turning Radius from Center - machine rear66 in
Clearance at Full Height and Dump95 in
Reach at Dump Height35 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground60 in
Width of Track18 in
Number of Track Rollers per Side5

Loader

Loader specifications
Tipping Angle5,952 °
Operating Load2,083 lb
Breakout Force—
