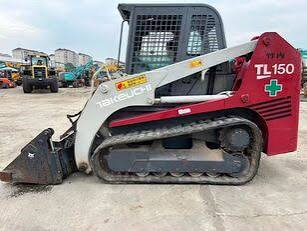

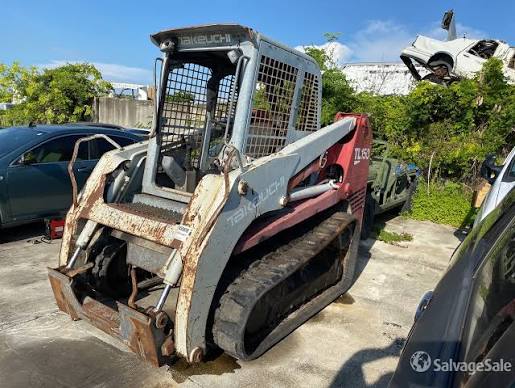

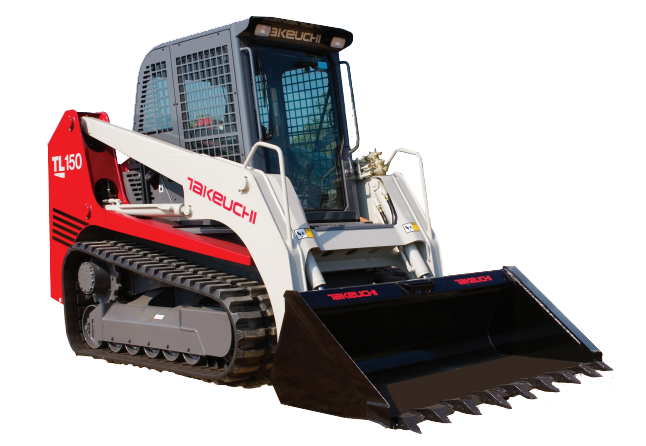

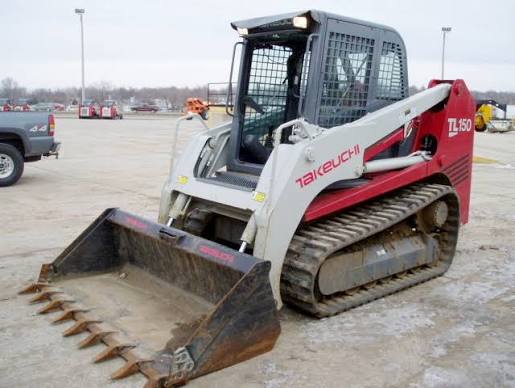

Takeuchi
TL150
- Operating Weight
- 10,902 lb
- Max Speed - high range
- 6.9 mph
- Displacement
- 269 in³
- Gross Power
- 97.0 hp
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 10,902 lb |
|---|---|
| Max Speed - high range | 6.9 mph |
| Max Speed - low range | 4.8 mph |
| Max Speed | 4.8 mph |
| Fuel Capacity | 28.5 gal |
| Hydraulic System Fluid Capacity | 16.9 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 A |
| Engine Oil Capacity | 3.7 gal |
| Static Tipping Load | 7,056 lb |
| Breakout Force Bucket | 8,692 lb |
Engine
| Engine Model | 4TNV106T |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 97.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Peak Torque | 291 lb-ft |
Hydraulic System
| Pump Flow | 23.4 gal/min |
|---|---|
| Relief Valve Pressure | 2,986 psi |
| Dump Time | 3.3 s |
| Lower Time | 3.1 s |
| Raise Time | 4.8 s |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 93 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 96 in |
| Width Over Tracks | 73 in |
| Length with Bucket | 155 in |
| Clearance at Max Lift and Dump | 127 in |
| Turning Radius from Center - inc bucket | 96 in |
| Turning Radius from Center - machine rear | 69 in |
| Clearance at Full Height and Dump | 96 in |
| Reach at Dump Height | 40 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 64 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 6 |
Loader
| Tipping Angle | 7,056 ° |
|---|---|
| Operating Load | 2,470 lb |
| Breakout Force | — |
