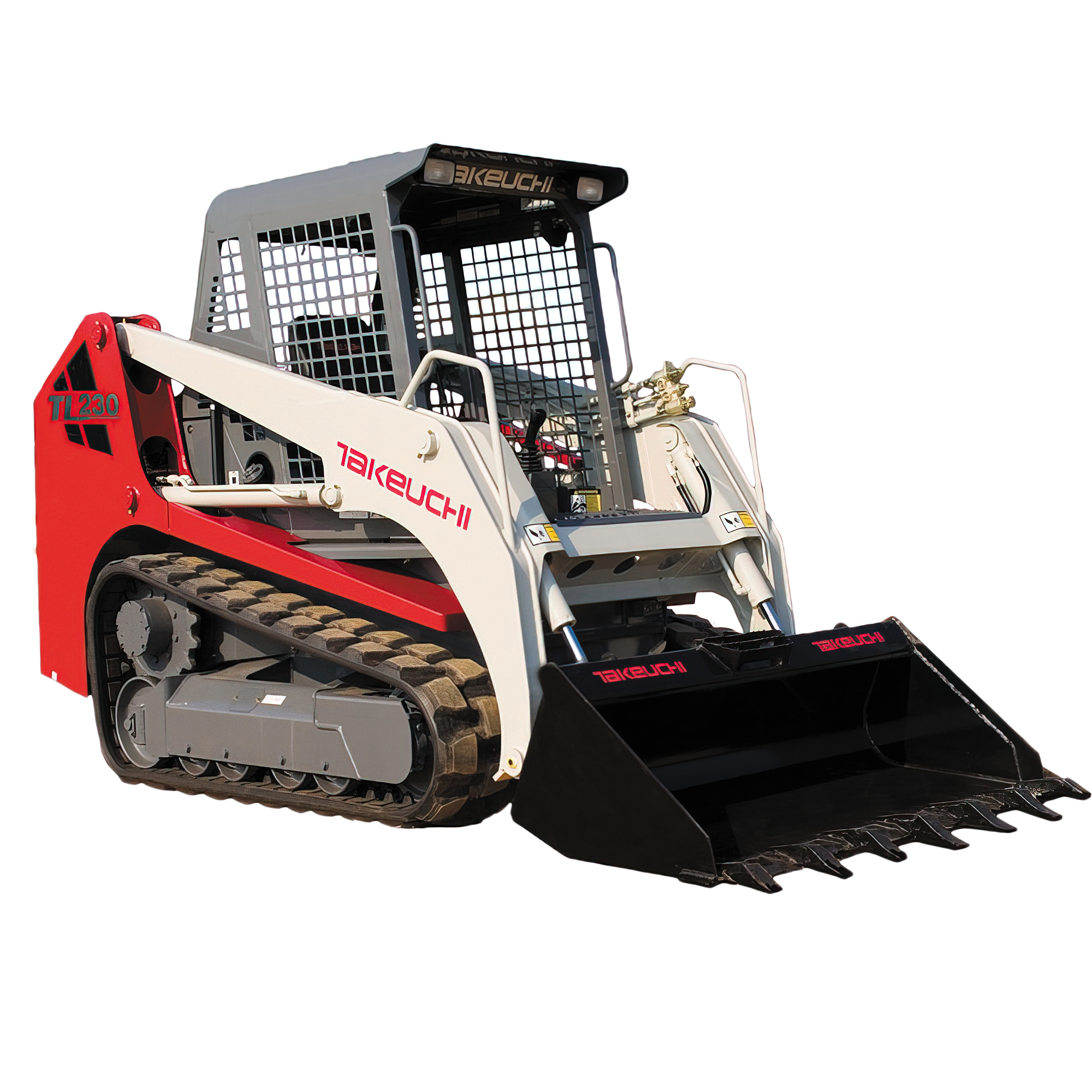

Takeuchi
TL230 Series 2
- Operating Weight
- 8,609 lb
- Max Speed - high range
- 6.9 mph
- Displacement
- 203 in³
- Gross Power
- 71.0 hp
1 / 5
Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 8,609 lb |
|---|---|
| Max Speed - high range | 6.9 mph |
| Max Speed - low range | 4.6 mph |
| Fuel Capacity | 19.9 gal |
| Hydraulic System Fluid Capacity | 15.4 gal |
| Cooling System Fluid Capacity | 3.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 A |
| Engine Oil Capacity | 3.2 gal |
Engine
| Engine Model | V3307D1 |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 71.0 hp |
| Net Power | 68.4 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Peak Torque | 182 lb-ft |
Hydraulic System
| Relief Valve Pressure | 3,000 psi |
|---|
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 89 in |
| Reach at Max Lift and Dump | 29 in |
| Width Over Tracks | 62 in |
| Length with Bucket | 138 in |
| Clearance at Max Lift and Dump | 94 in |
| Turning Radius from Center - inc bucket | 83 in |
| Turning Radius from Center - machine rear | 63 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Length of Track on Ground | 55 in |
| Width of Track | 13 in |
| Number of Track Rollers per Side | 5 |
Loader
| Bucket Capacity | 0.60 yd³ |
|---|---|
| Tipping Angle | 5,401 ° |
| Operating Load | 1,885 lb |
