Takeuchi

TL240

Compact Track Loader

Operating Weight
9,932 lb
Max Speed - high range
7.3 mph
Displacement
203 in³
Gross Power
86.0 hp
All compact track loaders

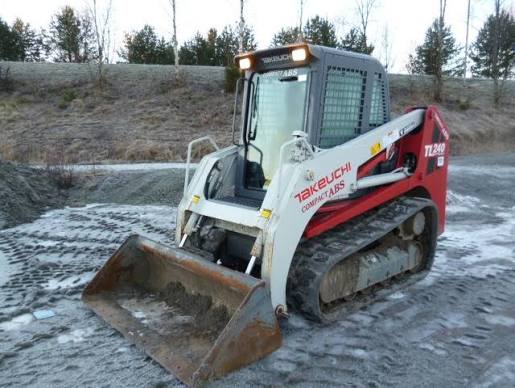

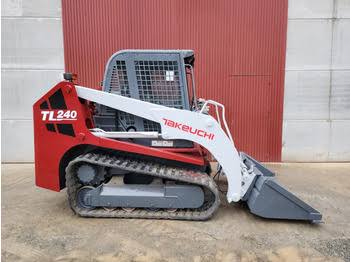

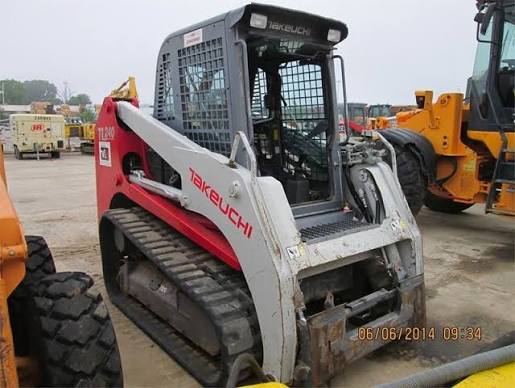

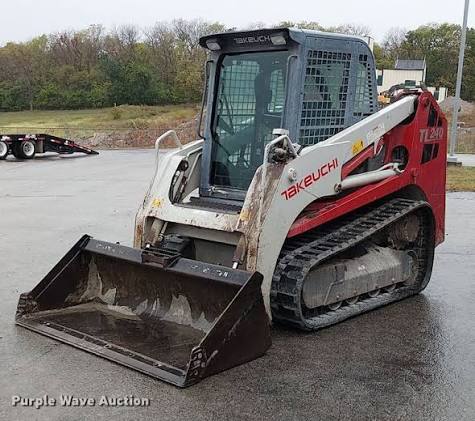

Takeuchi TL240 Compact Track Loader
1 / 5
Image 1 of 5
Image: rbauction.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,932 lb
Bucket Capacity - heaped0.90 yd³
Max Speed - high range7.3 mph
Max Speed - low range4.8 mph
Max Speed7.3 mph
Fuel Capacity23.8 gal
Hydraulic System Fluid Capacity19.9 gal
Cooling System Fluid Capacity4.4 gal
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity2.7 gal
Static Tipping Load5,952 lb

Engine

Engine specifications
Engine Model4TNV98I
Displacement203 in³
Power Measured @2,500 rpm
Gross Power86.0 hp
Net Power83.1 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,850 rpm
Max Torque219 lb-ft
Peak Torque219 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow20.1 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab90 in
Width to Outside of Tracks71 in
Reach at Max Lift and Dump35 in
Length with Bucket on Ground146 in
Width Over Tracks71 in
Length with Bucket150 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket93 in
Turning Radius from Center - machine rear66 in
Clearance at Full Height and Dump95 in
Reach at Dump Height35 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground60 in
Width of Track18 in
Number of Track Rollers per Side5
Track Gauge52 in
Track Shoe Width18 in

Loader

Loader specifications
Bucket Capacity0.80 yd³
Tipping Angle5,950 °
Operating Load2,081 lb
