Takeuchi

TL250

Compact Track Loader

Operating Weight
11,905 lb
Max Speed - high range
7.5 mph
Displacement
232 in³
Gross Power
98.0 hp
All compact track loaders

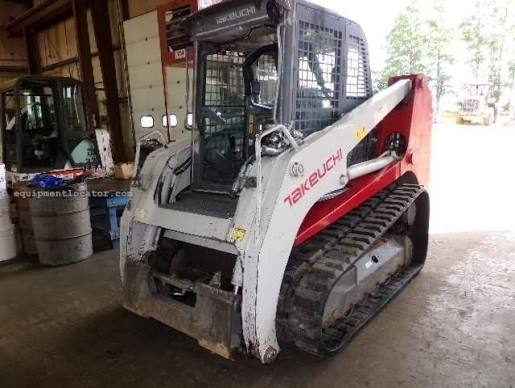

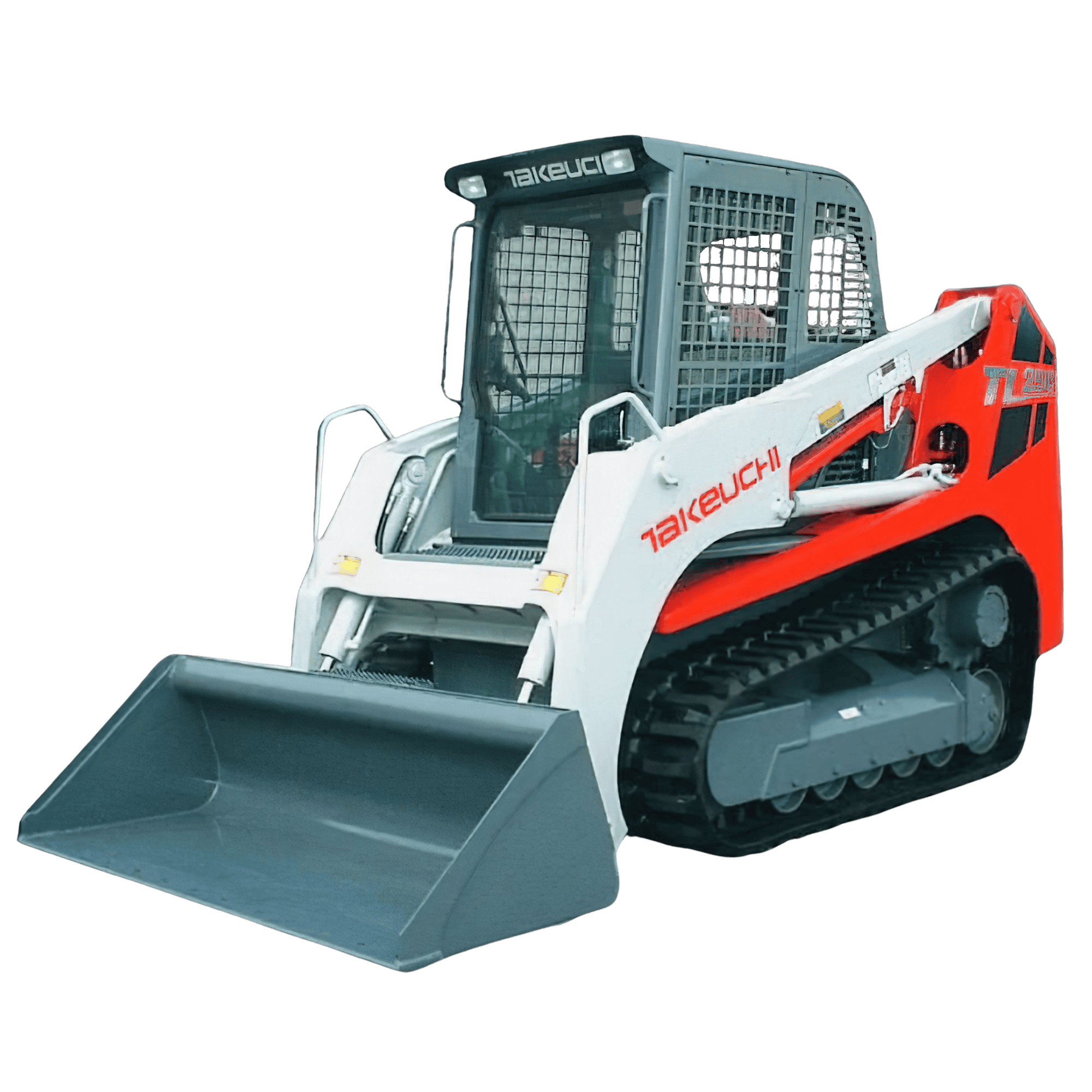

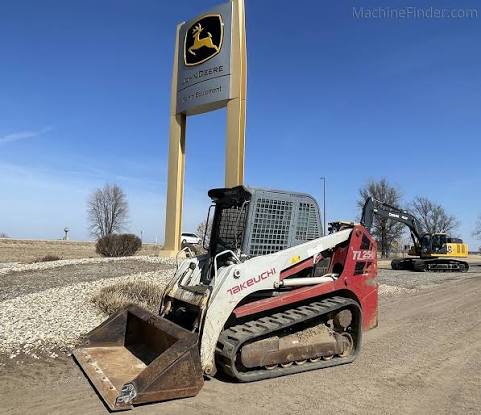

Takeuchi TL250 Compact Track Loader
1 / 5
Image 1 of 5
Image: shop.equipmentshare.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,905 lb
Bucket Capacity - heaped1.10 yd³
Max Speed - high range7.5 mph
Max Speed - low range4.9 mph
Max Speed7.5 mph
Fuel Capacity28.6 gal
Hydraulic System Fluid Capacity17.2 gal
Cooling System Fluid Capacity4.4 gal
Operating Voltage12 V
Alternator Supplied Amperage80 A
Engine Oil Capacity3.5 gal
Static Tipping Load7,055 lb

Engine

Engine specifications
Engine ModelV3800DI
Displacement232 in³
Power Measured @2,600 rpm
Gross Power98.0 hp
Net Power91.6 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,600 rpm
Max Torque231 lb-ft
Peak Torque240 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow23.5 gal/min
Relief Valve Pressure3,000 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab93 in
Width to Outside of Tracks74 in
Reach at Max Lift and Dump40 in
Length with Bucket on Ground157 in
Width Over Tracks74 in
Length with Bucket159 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket96 in
Turning Radius from Center - machine rear69 in
Clearance at Full Height and Dump96 in
Reach at Dump Height40 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Length of Track on Ground64 in
Width of Track18 in
Number of Track Rollers per Side6
Track Gauge56 in
Track Shoe Width18 in

Loader

Loader specifications
Bucket Capacity0.99 yd³
Tipping Angle7,055 °
Operating Load2,407 lb
