Tata Hitachi

EX1900-5

Mini Excavator

Gross Power
965.6 hp
Net Power
1,025.9 hp
All mini excavators
Tata Hitachi EX1900-5 Mini Excavator
1 / 5
Image 1 of 5
Image: tatahitachi.co.in

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity814.9 gal
Swing Speed5 rpm

Engine

Engine specifications
Engine ModelS12A2-Y1TAA1
Displacement2,069 in³
Gross Power965.6 hp
Net Power1,025.9 hp

Dimensions

Dimensions specifications
Height - Top of Cab269 in
Length of Track on Ground228 in
Upper Structure Ground Clearance79 in
Length of Tracks295 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.8 mph
Loading Shovel Operating Weight409,839 lb
Loading Shovel Shoe Width32 in
Loading Shovel Ground Pressure26 psi
Backhoe Shoe Width 132 in
Backhoe Operating Weight - Shoe 1411,162 lb
Backhoe Ground Pressure - Shoe 126 psi

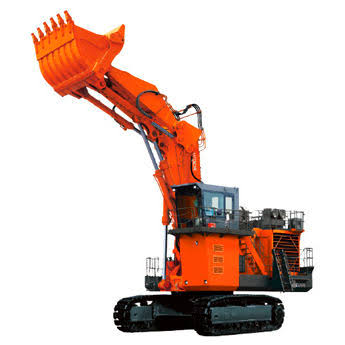

Loading Shovel

Loading Shovel specifications
Max Dig Depth234 in
Max Dig Reach529 in
Max Cutting Height576 in
Max Dump Height411 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth323 in
Max Cutting Height557 in
Max Dump Height357 in
Max Reach on Ground582 in
Max Vertical Wall Dig Depth152 in

Backhoe Boom / Stick 2

Backhoe Boom / Stick 2 specifications
Max Dig Depth364 in
Max Cutting Height571 in
Max Dump Height362 in
Max Reach on Ground616 in
Max Vertical Wall Dig Depth261 in

Backhoe Boom / Stick 3

Backhoe Boom / Stick 3 specifications
Max Dig Depth424 in
Max Cutting Height592 in
Max Dump Height386 in
Max Reach on Ground673 in
Max Vertical Wall Dig Depth293 in

Backhoe Boom / Stick 4

Backhoe Boom / Stick 4 specifications
Max Dig Depth465 in
Max Cutting Height685 in
Max Dump Height466 in
Max Reach on Ground750 in
Max Vertical Wall Dig Depth396 in
