Tata Hitachi
Kubota
L48
Backhoe Loader
Specifications pending
1 / 5

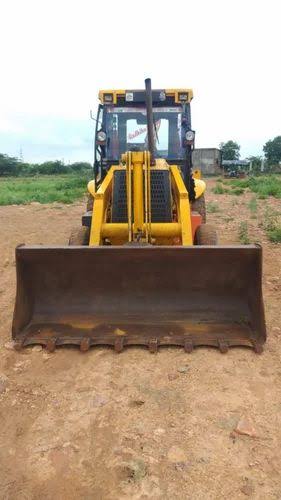

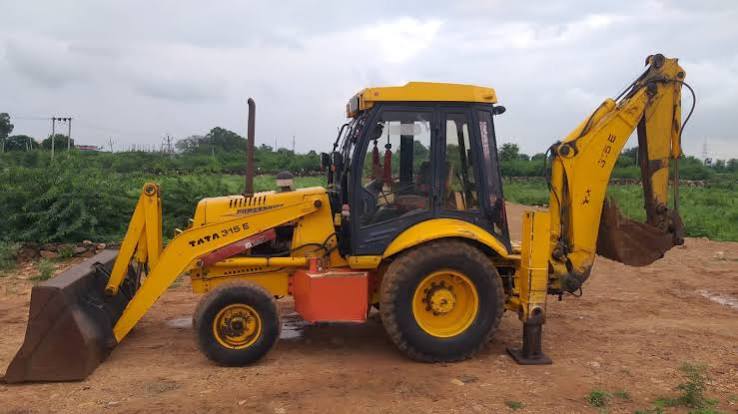

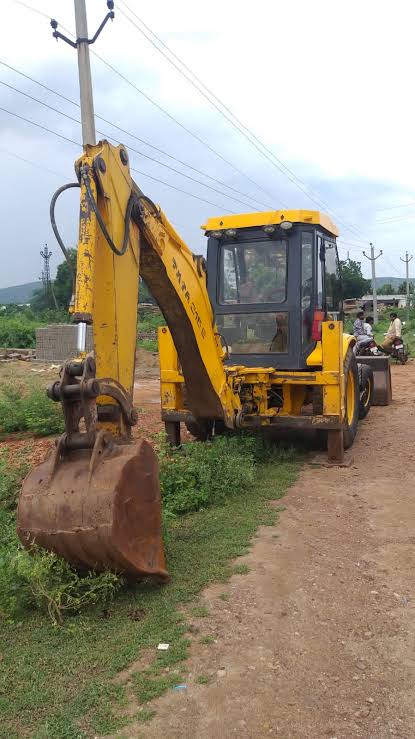

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Fuel Capacity | 36.0 gal |
|---|---|
| Hydraulic System Fluid Capacity | 24.1 gal |
| Cooling System Fluid Capacity | 5.8 gal |
| Tire Size Front - 2wd / 4wd | 9-16 16 PR |
| Oil System Fluid Capacity | 2.5 gal |
| Turning Radius | 165 in |
| Transmission Fluid Capacity | 3.7 gal |
| Rear Axle Fluid Capacity | 3.7 gal |
| Front Axle Fluid Capacity | 2.3 gal |
Engine
| Engine Model | Tata 497TC |
|---|---|
| Aspiration | Turbocharged |
Hydraulic System
| Pump Flow Capacity | 36.0 gal/min |
|---|---|
| Pump Type | Efficient hydraulic systemm with gear type tandem pump |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 93 in |
| Transport Length | 207 in |
Transmission
| Max Speed | 25.8 mph |
|---|---|
| Max Speed - Reverse | 28.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Backhoe
| Dig Depth | 169 in |
|---|---|
| Reach From Swivel | 220 in |
| Dig Depth - Extended | 217 in |
| Load Height - Extended | 172 in |
| Reach From Swivel - Extended | 261 in |
| Load Height | 141 in |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 134 in |
| Reach at Max Dump Height | 31 in |
| Dig Depth | 8 in |
