Tata Hitachi

ZAXIS120H

Excavator

Operating Weight
28,219 lb
Max Digging Depth
203 in
Net Power
88.6 hp
All excavators

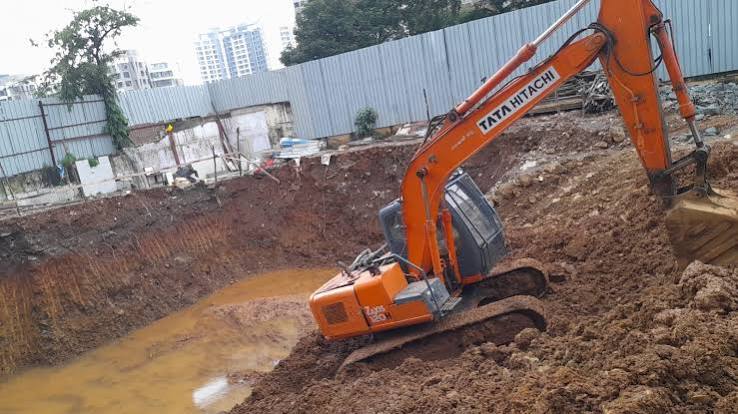

Tata Hitachi ZAXIS120H Excavator
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,219 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity55.5 gal/min
Hydraulic System Fluid Capacity34.4 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity4.2 gal
Cooling System Fluid Capacity5.1 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.9 gal

Engine

Engine specifications
Engine ModelCC-4BG1TC
Displacement264 in³
Power Measured @2,150 rpm
Net Power88.6 hp
Aspirationturbocharged
Torque Measured @600 rpm
Max Torque251 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground114 in
Tail Swing Radius84 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size20 in
Number of Shoes per Side44
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth203 in
Max Reach Along Ground306 in
Max Loading Height235 in
Max Vertical Wall Digging Depth183 in
Max Cutting Height330 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm
