Tata Hitachi

ZAXIS80LCK

Excavator

Operating Weight
15,873 lb
Max Digging Depth
178 in
Net Power
54.4 hp
All excavators

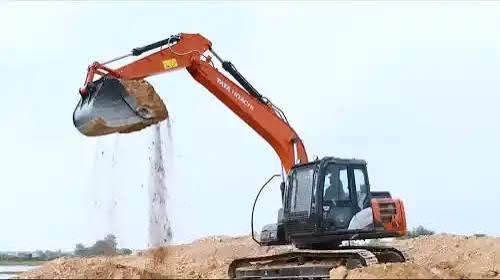

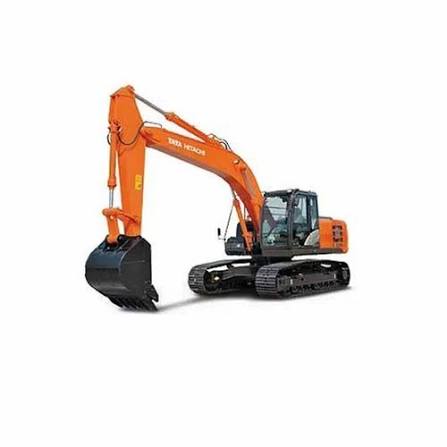

Tata Hitachi ZAXIS80LCK Excavator
1 / 5
Image 1 of 5
Image: indiamart.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,873 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity47.2 gal/min
Hydraulic System Fluid Capacity26.5 gal
Hydraulic System Relief Valve Pressure4,554 psi
Engine Oil Capacity3.2 gal
Cooling System Fluid Capacity2.6 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelCC-4JG1
Displacement187 in³
Net Power54.4 hp
Max Torque142 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab108 in
Tail Swing Radius70 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge74 in
Number of Track Rollers per Side5
Max Travel Speed3.2 mph
Shoe Size18 in
Number of Shoes per Side40
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth178 in
Max Reach Along Ground276 in
Max Loading Height241 in
Max Vertical Wall Digging Depth166 in
Max Cutting Height324 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
