TCM
New Holland
W110B
Wheel Loader
43 specifications
1 / 5

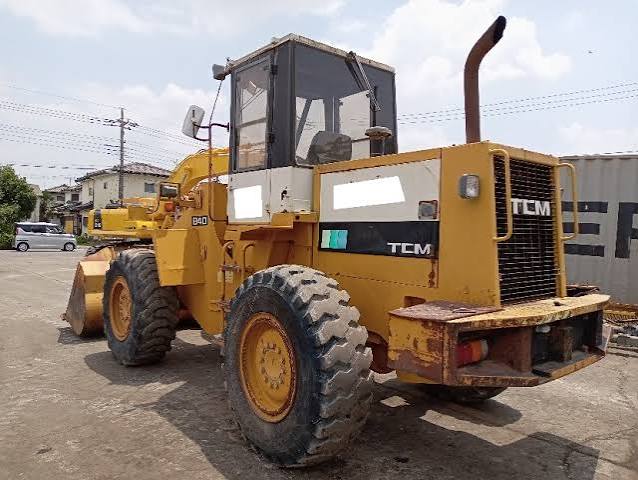

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 21,804 lb |
|---|---|
| Fuel Capacity | 45.0 gal |
| Tire Size | 17.5-25-12PR L2 |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Static Tipping Weight | 17,747 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 2.7 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 25 A |
| Front Axle/Diff Fluid Capacity | 9.0 gal |
| Rear Axle/Diff Fluid Capacity | 9.0 gal |
| Cooling System Fluid Capacity | 10.9 gal |
| Transmission Fluid Capacity | 5.3 gal |
Engine
| Engine Model | 6BDIT |
|---|---|
| Power Measured @ | 2,200 rpm |
| Net Power | 123.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 48.7 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 2,700 psi |
| Pump Type | closed and pressurized |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 115 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 42 in |
| Length with Bucket on Ground | 261 in |
| Hinge Pin - Max Height | 146 in |
Transmission
| Max Speed - Forward | 21.7 mph |
|---|---|
| Max Speed - Reverse | 21.7 mph |
| Transmission Type | countershaft type full powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.20 yd³ |
|---|---|
| Bucket Capacity - struck | 2.69 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 23,590 lb |
| Bucket Width | 98 in |
