Terex

1305M

Mini Excavator

Gross Power
91.0 hp
Net Power
102.0 hp
All mini excavators

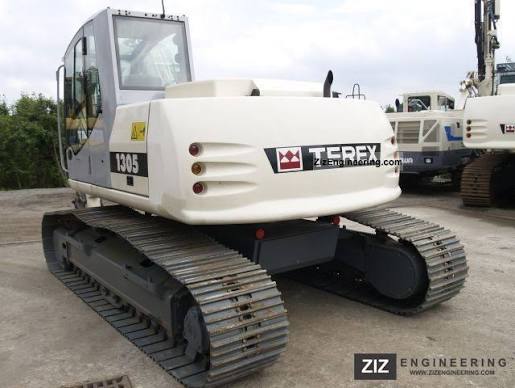

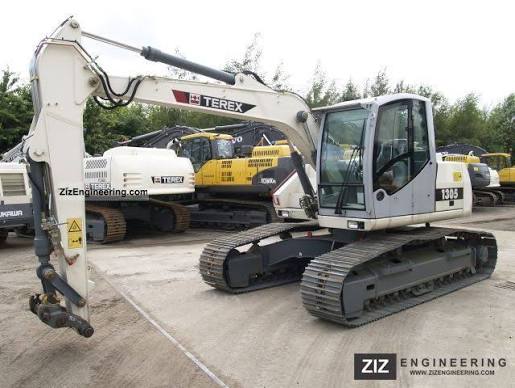

Terex 1305M Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity51.3 gal
Hydraulic Pump Flow Capacity49.7 gal/min
Hydraulic System Fluid Capacity39.7 gal
Hydraulic System Relief Valve Pressure5,221 psi
Operating Voltage24 V
Cooling System Fluid Capacity2.7 gal
Tire Size10.00-20
Hydraulic Pump Typeaxial piston pump

Engine

Engine specifications
Engine ModelBR4M2012
Displacement244 in³
Power Measured @2,000 rpm
Gross Power91.0 hp
Net Power102.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Height - Top of Cab121 in
Wheelbase100 in
Overall Width8 in
Upper Structure Clearance49 in

Transmission

Transmission specifications
Transmission TypePowershift
Max Travel Speed12.5 mph

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.29 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque25,593 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth329 in
Max Cutting Height359 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth214 in
Max Cutting Height374 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth183 in
Max Cutting Height312 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth205 in
Max Cutting Height324 in
