Terex

1404MK

Mini Excavator

Gross Power
99.0 hp
Net Power
94.0 hp
All mini excavators

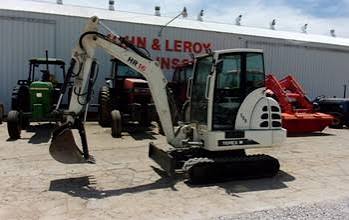

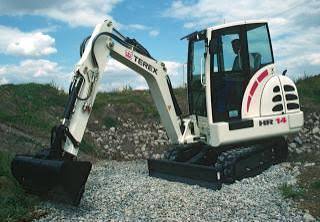

Terex 1404MK Mini Excavator
1 / 5
Image 1 of 5
Image: compactequip.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity50.2 gal
Hydraulic Pump Flow Capacity58.2 gal/min
Hydraulic System Fluid Capacity52.9 gal
Hydraulic System Relief Valve Pressure4,931 psi
Operating Voltage24 V
Engine Oil Capacity2.7 gal
Tire Size10.00-20
Hydraulic Pump Type1x axial piston pump

Engine

Engine specifications
Engine ModelBF4M 2012
Displacement195 in³
Power Measured @2,100 rpm
Gross Power99.0 hp
Net Power94.0 hp
Aspirationturbocharger

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab119 in
Wheelbase100 in
Overall Width8 in
Upper Structure Clearance49 in

Transmission

Transmission specifications
Max Travel Speed12.5 mph

Bucket

Bucket specifications
Reference Bucket Capacity0.90 yd³
Maximum Bucket Capacity1.50 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque27,658 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth202 in
Max Cutting Height383 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth221 in
Max Cutting Height398 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth193 in
Max Cutting Height361 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth215 in
Max Cutting Height374 in
