Terex
Volvo

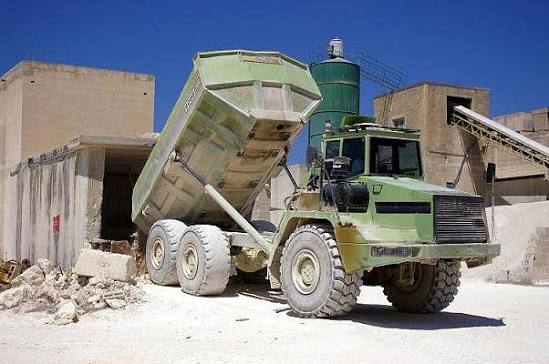

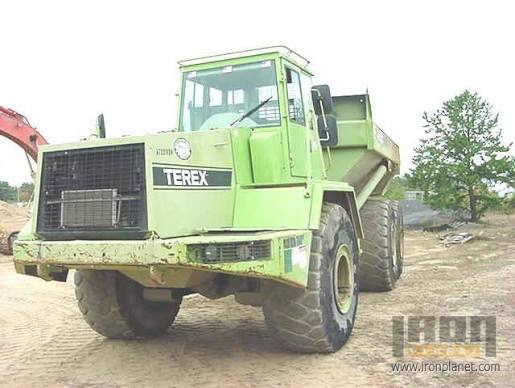

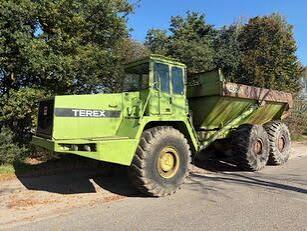

A35E
Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Fuel Capacity | 112.0 gal |
|---|---|
| Tire Size | 26.5 R 25 |
| Engine Oil Capacity | 9.5 gal |
| Cooling System Fluid Capacity | 23.0 gal |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 11.0 gal |
Engine
| Engine Model | Series 60 |
|---|---|
| Displacement | 775 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 400.0 hp |
| Net Power | 375.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged with air-to-air charge cooling water-cooled |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 1,450 lb-ft |
Weights
| Total Empty | 65,015 lb |
|---|---|
| Front Axle - empty | 31,345 lb |
| Total Loaded | 145,485 lb |
| Rear Axle - empty | 16,870 lb |
| Front Axle - loaded | 41,315 lb |
| Rear Axle - loaded | 52,085 lb |
| Center Axle - empty | 16,800 lb |
| Center Axle - loaded | 52,085 lb |
Dimensions
| Ground Clearance | 24 in |
|---|---|
| Wheelbase | 221 in |
| Overall Length | 420 in |
| Overall Width | 135 in |
| Overall Height | 145 in |
| Dump Height | 258 in |
| Dump Ground Clearance | 29 in |
Transmission
| Max Speed | 28.0 mph |
|---|---|
| Transmission Type | ZF 6WG 65 Automatic with manual override |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
Dump
| Rated Payload | 80,470 lb |
|---|---|
| Dump Angle | 65 ° |
| Raise Time | 16.0 s |
| Lower Time | 12.0 s |
| Capacity - Heaped | 28.80 yd³ |
| Capacity - Struck | 22.20 yd³ |
