434E

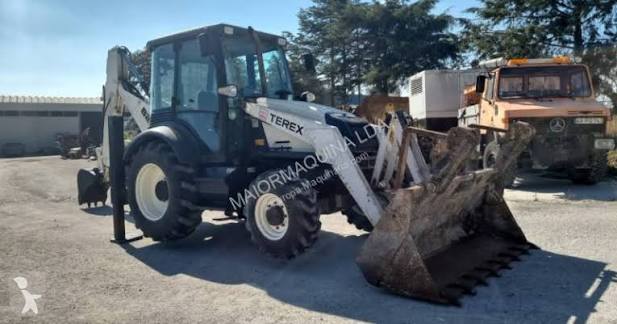

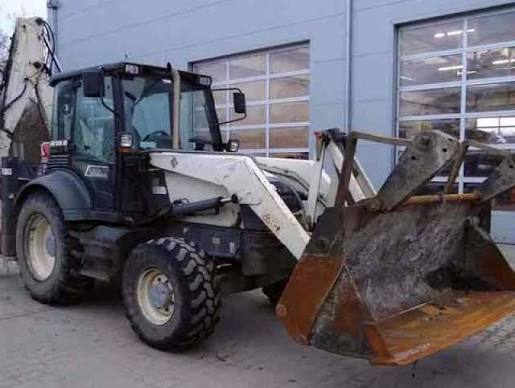

Backhoe Loader
37 specifications
1 / 5
Image 1 of 5
Specifications
47 data points
Operating Specifications
| Fuel Capacity | 34.4 gal |
|---|---|
| Hydraulic System Fluid Capacity | 37.8 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 12.5x18 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 75 A |
| Turning Radius | 152 in |
| Transmission Fluid Capacity | 4.0 gal |
| Max Weight | 15,763 lb |
| Rear Axle Fluid Capacity | 4.7 gal |
| Front Axle Fluid Capacity | 3.4 gal |
Engine
| Engine Model | 1104C-44T |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 92.0 hp |
| Net Power | 86.0 hp |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 291 lb-ft |
Hydraulic System
| Pump Flow Capacity | 37.6 gal/min |
|---|---|
| Relief Valve Pressure | 3,250 psi |
| Pump Type | twin gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 84 in |
| Transport Width | 91 in |
| Transport Length | 289 in |
| Height to Top of Suspended Cab | 109 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Max Speed - Reverse | 25.5 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4 speed synchro gearbox |
Tires & Wheels
| Rear Tires Size | 16.9x28 |
|---|
Backhoe
| Dig Depth | 176 in |
|---|---|
| Reach From Swivel | 226 in |
| Dig Depth - Extended | 229 in |
| Load Height - Extended | 179 in |
| Bucket Dig Force | 11,596 lb |
| Reach From Swivel - Extended | 277 in |
| Reach at Load Height - Extended | 115 in |
| Bucket Dig Force - Extended | 11,596 lb |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 104 in |
| Bucket Breakout Force | 1,069,191 lb |
| Bucket Width | 91 in |
| Reach at Max Dump Height | 26 in |
| Dig Depth | 6 in |
