Terex

880 Elite

Backhoe Loader

Bucket Capacity
1.60 yd³
Max Speed
25.5 mph
Gross Power
100.0 hp
Net Power
94.0 hp
All backhoe loaders

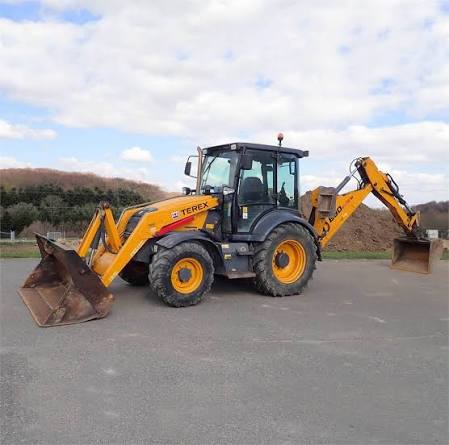

Terex 880 Elite Backhoe Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity34.4 gal
Hydraulic System Fluid Capacity37.8 gal
Cooling System Fluid Capacity4.3 gal
Tire Size Front - 2wd / 4wd16/70x20
Operating Voltage12 V
Oil System Fluid Capacity2.3 gal
Alternator Supplied Amperage75 A
Turning Radius156 in
Transmission Fluid Capacity6.1 gal
Max Weight16,566 lb
Rear Axle Fluid Capacity4.7 gal
Front Axle Fluid Capacity3.4 gal

Engine

Engine specifications
Engine Model1104C-44T
Displacement269 in³
Power Measured @2,200 rpm
Gross Power100.0 hp
Net Power94.0 hp
Torque Measured @1,400 rpm
Net Max Torque305 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Relief Valve Pressure3,250 psi
Pump Typetwin gear

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheelbase84 in
Transport Width91 in
Transport Length289 in
Height to Top of Suspended Cab109 in

Transmission

Transmission specifications
Max Speed25.5 mph
Max Speed - Reverse25.6 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typefull powershift

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size18.4x26

Backhoe

Backhoe specifications
Dig Depth175 in
Reach From Swivel226 in
Dig Depth - Extended228 in
Load Height - Extended180 in
Bucket Dig Force11,596 lb
Reach From Swivel - Extended277 in
Reach at Load Height - Extended115 in
Bucket Dig Force - Extended11,596 lb

Loader

Loader specifications
Bucket Capacity1.60 yd³
Clearance at Max Dump Height106 in
Bucket Breakout Force12,291 lb
Bucket Width94 in
Reach at Max Dump Height26 in
Dig Depth5 in
